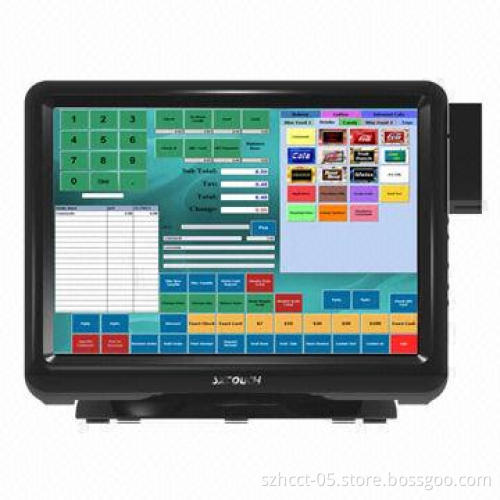

Touchscreen POS Terminal with CCC and FCC Marks

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

Main board: CPU, Intel® Pine view D525 (dual core) 1.80GHz with L2 cache 512kb

Chipset: Intel® Pineview + ICH8M

System memory: 1 x SO-DIMM DDRIII 2GB, up to 4GB

Display: TFT LED, 38.1cm (15")

Brightness: 350 nits

Resolution: 1024 x 768 pixels

Touch screen: true flat 5-wire resistive

Storage:

DC input: 1 x mini DIN 2P (12V DC only)

I/O ports: external

Network (LAN): 1 x gigabit Ethernet by RJ-45

USB port: 4 x USB 2.0

Serial port: 2 x RS-232 with IR/5V/12V power

Audio port: 1 x line-out, 1 x mic-in (optional)

PS/2 port: 2 x PS/2 connector for keyboard

LPT port: 1 x DB-25 printer port (standard)

VGA port: 1 x DB-15 VGA port (optional)

Power supply: external adapter, DC model 80W, +12V DC 5.0A maximum voltage

Main unit colors: gray/white/black

Customized colors for plastic parts are accepted

VESA mounting: 100 x 100mm

Operating temperature: 0 to 40°C, 10 to 90%RH, non-condensing

Storage temperature: -20 to 60°C, 10 to 90%RH, non-condensing

Certifications: CCC, CE and FCC

RoHS Directive-compliant

OS: Microsoft Windows 7, Windows POSReady, Windows XP Pro for Embedded, WinCE and Fedora (Linux)

Dimensions: (W) 370 x (H) 300 x (D) 236mm

Weight: 6.5kg (aluminum base: 1kg)

HDD type: 1 x SATA 6.4cm (2.5") HDD

SSD type: 1 x SATA 6.4cm (2.5") SSD (optional)
