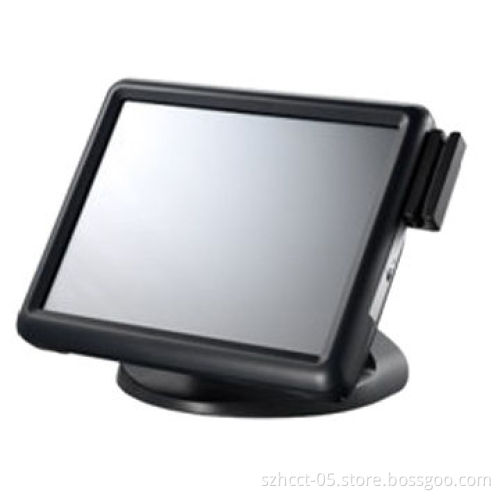

15-inch TFT LED touch screen POS terminal overview

This product can compatible multi-main board and interface, also with smart card reader module

It has 15” TFT LED that can operate more easily and quickly

15-inch TFT LED touch screen POS terminal sale points

Main board CPU: Intel at pineview D425 (dual-core) 1.80GHz with L2 Cache 512kB

Chipset: Intel at pineview + ICH8M

System memory: 1 x SO-DIMM DDRIII 2G, up to 4GB

Display TFT LED: 38.1cm (15 inches)

Brightness: 350nit

Resolution: 1024 x 768p

Touch screen: true flat 5-wire resistive

Storage HDD type: 1 x SATA 6.4cm (2.5 inches) HDD (320G)

SSD type: 1 x SATA 6.4cm (2.5 inches) SSD (optional)

DC input: 1 x mini DIN 2P (12V DC only)

I/O ports:

External network (LAN) 1 x gigabit Ethernet by RJ45
USB port 4 x USB 2.0
Serial port: 2 x RS232 with IR/5 or 12V power
Audio: 1 x line-out
1 x mic-in (optional)
PS/2 port: 2 x PS/2 connector for keyboard
LPT port: 1 x DB-25 printer port (standard)
VGA port: 1 x DB-15 VGA port (optional)

Power supply external adapter:

DC model: 80W
Voltage: +12V DC, 5.0A (maximum)

Main unit colors: gray, white and black

Customized colors are accepted

VESA: mounting 100 x 100mm

Operating temperature: 0 to 40°C, 10 to 90% RH, non-condensing

Storage temperature: -20 o 60°C, 10 to 90% RH, non-condensing

Certifications: CCC, CE and FCC

RoHS Directive-compliant

Operating system: supports Windows 7, Windows POSReady, WindowsXP Pro for Embedded, WinCE and Fedora (Linux)

Dimensions: (W) 370 x (H) 300 x (D) 236mm

Weight: 6.5kg

Aluminum base: 1kg

External network (LAN) 1 x gigabit Ethernet by RJ45

USB port 4 x USB 2.0

Serial port: 2 x RS232 with IR/5 or 12V power

Audio: 1 x line-out

1 x mic-in (optional)

PS/2 port: 2 x PS/2 connector for keyboard

LPT port: 1 x DB-25 printer port (standard)

VGA port: 1 x DB-15 VGA port (optional)

DC model: 80W

Voltage: +12V DC, 5.0A (maximum)
