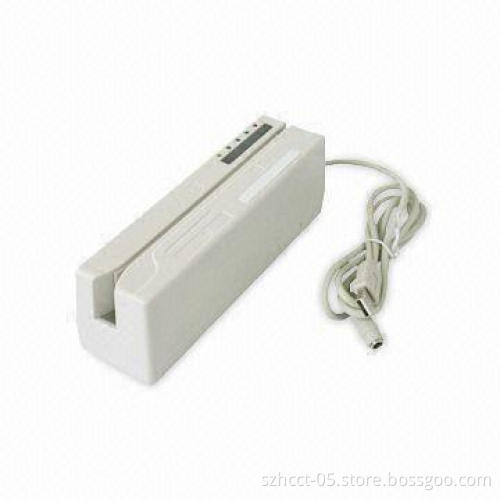

Magnetic Strip Reader/Writer with Manual Swipe and 12V DC/800mA Power Input

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Manual swipe

Support reading/writing HICO/ LOCO (300 to 4000 Oe) magneticcards

Support writing triple tracks in one swipe

12VDC working voltage, low power consumption

ISO 7811, 8484 (passbook) conformance

USB interface (Virtual COM) (RS232 optional)

Operation responded by LED

Plastic cover

Software supports Microsoft's Windows 98/ME/2000/XP/2003

Specifications:

Magnetic card standard: ISO 7811 track1&2&3, ISO8484,ISO7811

Track1:

Recording density: 210BPI

Capability: 79 characters (7 bit code)

Start/end code: %/?

Tract2:

Recording density: 75BPI

Capability: 40 characters (5 bit code)

Start/end code: %/"

Tract3:

Recording density: 210BPI

Capability: 107 characters (5 bit code)

Start/end code: ;/?

ISO8484

Track1:

Recording density: not defined

Capability: not defined

Start/end code:

Tract2:

Recording density: 210BPI

Capability: 107 characters (5 bit code)

Start/end code: ;:/? ;:/< ;/? =/? ;/<</li>

Tract3:

Recording density: 210BPI

Capability: 107 characters (5 bit code)

Start/End code: ;:/? ;:/< ;/? =/? ;/<</UL>
Enforce speed: 15 to 140cm/sec, 10 to 140cm/sec, 15 to120cm/sec
Read only speed: 10 to 150cm/sec
Head lifetime: 300,000tmes pass
Power input: 12V DC, 800mA
Operation temperature: 5 to 55°C
Operation humidity: 20 to 90% RH
Size: 186 x 52 x 60mm
Weight: 450g
Serial port setting: 2400, 4800, 9600(default), or 19200 baud,none parity, 8data bits, 1 stop bit
Note: total cable length should notable longer than 1.0m
