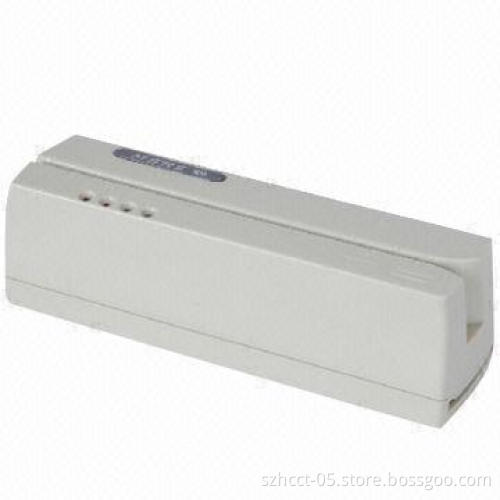

Magnetic Card Reader, Hi/Loco Writer
  • Magnetic Card Reader, Hi/Loco Writer
Magnetic Card Reader, Hi/Loco Writer

Magnetic Card Reader, Hi/Loco Writer

Get Latest Price
Payment Type:
T/T, L/C, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, PayPal or Western Union
Product Description
Product Description
  • Features:
    • Compact size
    • Manual swipe to read/write data with a single pass
    • Read/write magnetic stripe card in both ISO and IBM format
    • Read/write magnetic cards of Hi/Loco 300 to 2750OE
    • Read/write up to triple tracks (track 2 and 3 or track 1, 2 and3)
    • LED and beeper indication for power on/read/writeoperations
    • Well designed software/hardware and imported key componentsensure the whole good performance
    • Module structure technology applied to ensure high efficiencyand reliability
  • Specification:
    • Card standards: IBM, ISO, DIN and ANSI
    • Manual feeding speed: 20 to 100mm/second
    • Writing density:
      • First track: 210BPI (maximum 76 characters)
      • Second track: 75BPI/210 BPI (maximum 36/104 characters)
      • Third track: 210BPI (maximum 104 characters)
    • Interface: RS232/2,400/4,800/9,600bps at option
    • Reliability: MTBF >20,000 hours, MTTR <30 minimum
    • Magnetic head lifetime: minimum 500,000 swipes
    • Power supply: 12V DC by external adapter
    • Operating conditions: 0 to 40°C 15 to 85% RHnon-condensing
    • Dimension (L x W x H): 210 x 60 x 60mm
    • Cable length: 2m
    • Weight: about 1.4kg
    • Housing: plastic PC and ivory color
    • Model description: 2300x1-x2x3
    • Type X1 interface X2X3 magnetic tracks
    • 2300(MSRE, with Hi-Co and Lo-Co) R RS232 Series port 44 1 and 2tracks U USB 55 2 and 3 tracks 66 1, 2, 3 tracks
    • For example: HCC2300 R 66MSRE (Hi-Co and Lo-Co), with RS232series interface and triple tracks (1/2/3)
  • Compact size
  • Manual swipe to read/write data with a single pass
  • Read/write magnetic stripe card in both ISO and IBM format
  • Read/write magnetic cards of Hi/Loco 300 to 2750OE
  • Read/write up to triple tracks (track 2 and 3 or track 1, 2 and3)
  • LED and beeper indication for power on/read/writeoperations
  • Well designed software/hardware and imported key componentsensure the whole good performance
  • Module structure technology applied to ensure high efficiencyand reliability
  • Card standards: IBM, ISO, DIN and ANSI
  • Manual feeding speed: 20 to 100mm/second
  • Writing density:
    • First track: 210BPI (maximum 76 characters)
    • Second track: 75BPI/210 BPI (maximum 36/104 characters)
    • Third track: 210BPI (maximum 104 characters)
  • Interface: RS232/2,400/4,800/9,600bps at option
  • Reliability: MTBF >20,000 hours, MTTR <30 minimum
  • Magnetic head lifetime: minimum 500,000 swipes
  • Power supply: 12V DC by external adapter
  • Operating conditions: 0 to 40°C 15 to 85% RHnon-condensing
  • Dimension (L x W x H): 210 x 60 x 60mm
  • Cable length: 2m
  • Weight: about 1.4kg
  • Housing: plastic PC and ivory color
  • Model description: 2300x1-x2x3
  • Type X1 interface X2X3 magnetic tracks
  • 2300(MSRE, with Hi-Co and Lo-Co) R RS232 Series port 44 1 and 2tracks U USB 55 2 and 3 tracks 66 1, 2, 3 tracks
  • For example: HCC2300 R 66MSRE (Hi-Co and Lo-Co), with RS232series interface and triple tracks (1/2/3)
  • First track: 210BPI (maximum 76 characters)
  • Second track: 75BPI/210 BPI (maximum 36/104 characters)
  • Third track: 210BPI (maximum 104 characters)
