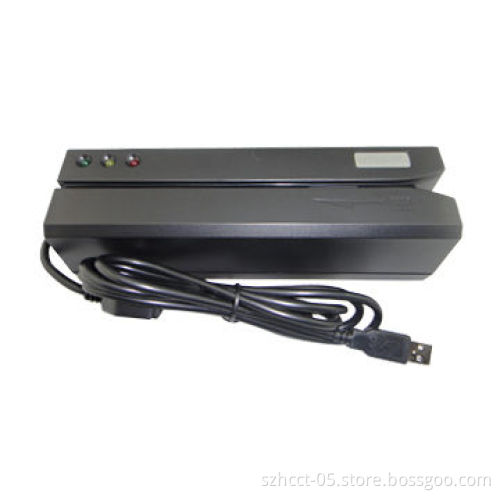

Hi-Co and Lo-Co Mag-stripe Reader/Writer/Encoder, 350mA
  • Hi-Co and Lo-Co Mag-stripe Reader/Writer/Encoder, 350mA
Hi-Co and Lo-Co Mag-stripe Reader/Writer/Encoder, 350mA

Hi-Co and Lo-Co Mag-stripe Reader/Writer/Encoder, 350mA

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Power reference:
    • Power requirements: 24V DC ± 5%
  • Consumption:
    • Typical: 350mA
    • Maximum 600mA plus for each writing track
  • Power supply: external switching power 24V/2.5A
  • Interface: serial interface or USB
  • Ripple: 50mVp-p or less
  • Dielectric strength: 500V DC for 1 minute
  • Performance:
    • Read card: track 1, track 2 and track 3
    • Bit per density: 210bpi, 75/210bpi and 210bpi
    • Coercive force: read/write 300 to 4000oe mag.card
    • Card thickness: 0.76 to 1.2mm
    • Read speed: STD card/Jitter ±15%/A 60% (5-55ips/5-50ips/5-50ips)
    • Write speed: 5 to 30ips
    • Write jitter: (interval) < ± 10%, (sub-interval) < ± 12%
    • Error rate:
      • Reading: <0.5%
      • Writing: <0.8%
    • Head life: minimum 1000K swipes for both read/write head
  • Physics:
    • Body material: ABS 94V-0
    • Weight: approx. 1.4kg
    • Dimensions: (L) 212 x (W) 64 x (H) 63mm
    • Swipe: manual and single direction
  • Environment:
    • Operating: -10 to 55°C and 10 to 85% RH humidity
    • Storage: -30 to 70°C, 10 to 90% RH humidity
  • Safety approval:
    • Certifications: FCC, CE, UL and cUL
  • RoHS Directive-compliant
  • Power requirements: 24V DC ± 5%
  • Typical: 350mA
  • Maximum 600mA plus for each writing track
  • Read card: track 1, track 2 and track 3
  • Bit per density: 210bpi, 75/210bpi and 210bpi
  • Coercive force: read/write 300 to 4000oe mag.card
  • Card thickness: 0.76 to 1.2mm
  • Read speed: STD card/Jitter ±15%/A 60% (5-55ips/5-50ips/5-50ips)
  • Write speed: 5 to 30ips
  • Write jitter: (interval) < ± 10%, (sub-interval) < ± 12%
  • Error rate:
    • Reading: <0.5%
    • Writing: <0.8%
  • Head life: minimum 1000K swipes for both read/write head
  • Reading: <0.5%
  • Writing: <0.8%
  • Body material: ABS 94V-0
  • Weight: approx. 1.4kg
  • Dimensions: (L) 212 x (W) 64 x (H) 63mm
  • Swipe: manual and single direction
  • Operating: -10 to 55°C and 10 to 85% RH humidity
  • Storage: -30 to 70°C, 10 to 90% RH humidity
  • Certifications: FCC, CE, UL and cUL
