Touching POS Terminal with TFT LED display and HDD storage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

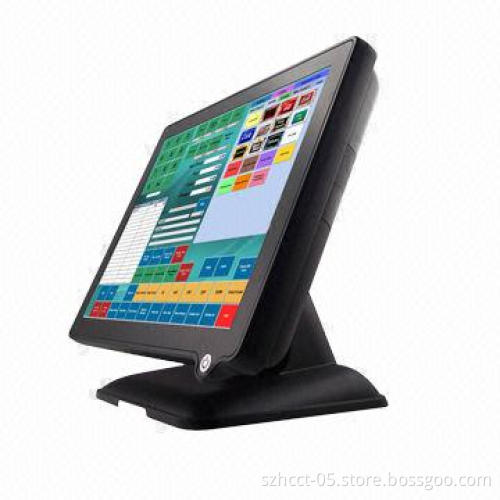

Touching POS Terminal--- HPOS15C

Specification

Board: CPU

INTEL® Cedar Trail-D Processor D2550 1.86GHz with L2 Cache 1MB

Chipset: INTEL®NM10 Express chipset

System memory: 1 x SO-DIMM DDRIII 2G , up to 4GB

Display: TFT LED

38.1cm (15")

Brightness: 350nits

Resolution: 1024 x 768

Touch screen: true flat Projected Capacitive Technology / True Flat 5-Wire Resistive

Storage: HDD Type

1 x SATA 6.4cm (2.5'')HDD

SSD type: 1 x SATA 6.4cm (2.5”) SSD (optional)

DC input: 1 x Mini Din 2P (DC 12V only)

I/O ports: external

Network (LAN): 1 x Gigabit Ethernet by RJ-45

USB port: 4 x USB 2.0

Serial port: 4 x RS-232 w/ IR/5V/12V power

Audio: 1 x Line-out ; 1 x Mic-In (optional)

PS/2 port: 1 x PS/2 connector for Keyboard

LPT Port: 1 x DB-25 Printer Port (Standard)

VGA Port/HDMI: 1 x DB-15 VGA Port (optional)

Power supply: external adapter, DC Model:80 Watts, Voltage:+12VDC 5.0A max.

Color: main unit: gray / White / Black; customized color for plastic parts

VESA mounting

100 x 100 mm

Operating temperature: 0 to 40 deg. C, 10% ~ 90% RH, non-condensing

Storage temperature: -20 to 60 deg. C, 10% ~ 90% RH, non-condensing

Certifications: CCC，CE, FCC, RoHS

OS support: Windows 7, Windows POSReady, Windows XP Pro for Embedded, Windows CE，Fedora(Linux)

Dimension( Wx H x D ): 370 x 300 x 236 mm

Weight: 5.7kg

(Aluminum base: 1kg )
