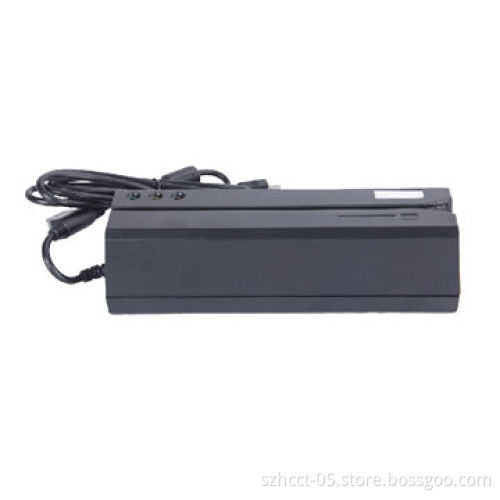

Hi-Co and Lo-Co Magstripe Reader/Writer (Encoder), Bit Per Density of 210, 75/210, 210bpi

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Power reference:

Power requirements: 24V DC ± 5%

Consumption:
Typical: 350mA maximum, 600mA plus for each writing track

Power supply: external switching power 24V/2.5A

Interface: serial interface or USB

Ripple: 50mVp-p or less

Dielectric strength: 500V DC for 1 minute

Performance:

Read card: Track1/Track2/Track3

Bit per density: 210, 75/210, 210bpi

Coercive force: read/write 300 to 4000oe Mag.card

Card thicknesses: 0.76 to 1.2mm

Reading speed: STD card, jitter ±15% Amp 60%, 5 to 55ips

Writing speed: 5 to 30ips

Write jitter: interval <±10%, sub-interval <±12%

Error rate:
Read: <0.5%
Write: <0.8%

Head lifespan: minimum of 1,000K swipes for both read/write head

Physical specifications:

Body material: ABS 94V-0

Weight: approximately 1.4kg

Dimensions: 212 (L) x 64 (W) x 63mm (H)

Swipe: manual, single direction

Environment:

Operation: -10 to 55°C, 10 to 85% RH humidity

Storage: -30 to 70°C, 10 to 90% RH humidity

Safety approval:

Certificates: FCC, CE, UL, cUL and RoHS
