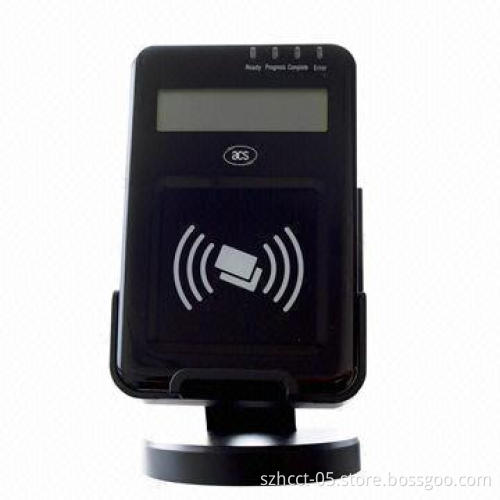

ACR1222L Visual Vantage USB NFC Reader with LCD

Get Latest Price

Payment Type:: T/T, L/C, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

Overview:

An LCD-equipped PC-linked NFC contactless reader with USB asits host interface
It is developed based on the 13.56MHz RFID technology and theISO/IEC 18092 standard
Can support ISO14443 type A and B cards, Mifare, FeliCa and all4 types of NFC tags
With its PC/SC compliance, it ensures easy upgrading of PC/SCsmart card applications to improve user interaction
It is equipped with 4 LEDs, a buzzer and an LCD that provideusers with clear indications of the reader or applicationstatus
The 2-line graphic LCD has multiple language support, includingChinese, English, Japanese and some European languages
It allows interactive operation such as scrolling up and down,left and right and more
Moreover its three built-in SAM slots provides enhancedsecurity during contactless operations

Typical applications include e-payment, loyalty programs andaccess control

Features:

USB 2.0 full-speed interface
CCID compliance

Smart card reader:

Reading/writing speed can reach for up to 424kbps
Built-in antenna for contactless tag access, card readingdistance for up to 50mm (depending on tag type)
Supports ISO 14443 part 4 type A and B cards, Mifare, FeliCaand all four types of NFC (ISO/IEC 18092) tags
Built-in anti-collision features (only one tag is accessed atany time)
Three ISO7816-compliant SAM slots

Built-in peripherals:

Two-line graphic LCD with interactive operability (such asscrolling up and down, left and right and more) and multilingualsupported (such as Chinese, English, Japanese and several Europeanlanguages)
Four user-controllable LEDs
User-controllable buzzer
USB firmware upgradable

An LCD-equipped PC-linked NFC contactless reader with USB asits host interface

It is developed based on the 13.56MHz RFID technology and theISO/IEC 18092 standard

Can support ISO14443 type A and B cards, Mifare, FeliCa and all4 types of NFC tags

With its PC/SC compliance, it ensures easy upgrading of PC/SCsmart card applications to improve user interaction

It is equipped with 4 LEDs, a buzzer and an LCD that provideusers with clear indications of the reader or applicationstatus

The 2-line graphic LCD has multiple language support, includingChinese, English, Japanese and some European languages

It allows interactive operation such as scrolling up and down,left and right and more

Moreover its three built-in SAM slots provides enhancedsecurity during contactless operations

USB 2.0 full-speed interface

CCID compliance

Reading/writing speed can reach for up to 424kbps

Built-in antenna for contactless tag access, card readingdistance for up to 50mm (depending on tag type)

Supports ISO 14443 part 4 type A and B cards, Mifare, FeliCaand all four types of NFC (ISO/IEC 18092) tags

Built-in anti-collision features (only one tag is accessed atany time)

Three ISO7816-compliant SAM slots

Two-line graphic LCD with interactive operability (such asscrolling up and down, left and right and more) and multilingualsupported (such as Chinese, English, Japanese and several Europeanlanguages)

Four user-controllable LEDs

User-controllable buzzer

USB firmware upgradable
