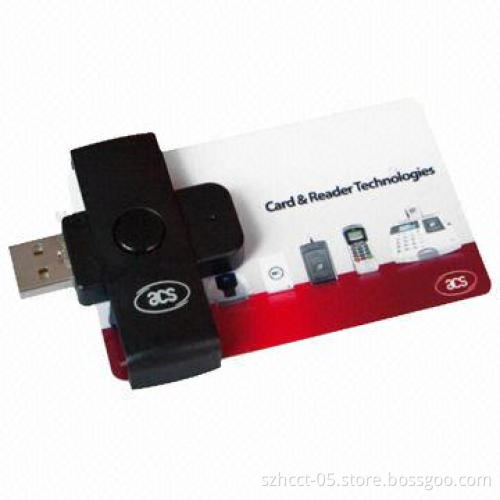

ACR38U Pocket Mate Smart Card Reader, 50mA Supply Current

Get Latest Price

Payment Type:: T/T, L/C, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

Features:

Supports ISO 7816 class A, B and C (5, 3, 1.8V) cards
Performs read and write operations on all microprocessor cardswith 0/1 T protocols
Supports most of popular memory card types in market

Cards following I2C bus protocol (free memory cards) such as:

Atmel: AT24C01/02/04/08/16/32/64/128/256/512/1024
SGS-Thomson: ST14C02C and ST14C04C
Gem plus: GFM1K, GFM2K, GFM4K and GFM8K
Cards with intelligent 256 bytes EEPROM and write protectfunctions: SLE4432, SLE4442, SLE5532 and SLE5542
Cards with intelligent 1K bytes EEPROM and write-protectfunctions: SLE4418, SLE4428, SLE5518 and SLE5528
Cards with 104 type of EEPROM (non-reloadable token countercards): SLE4406, SLE4436, SLE5536 and SLE6636
Cards with secure memory IC with password and authentication:AT88SC153 and AT88SC1608
Cards with intelligent 416-bit EEPROM with internal PIN check:SLE4404
Cards with security logic with application zone: AT88SC101,AT88SC102 and AT88SC1003
Supports PPS (protocol and parameters selection)
Short-circuit protection
RoHS Directive-compliant
Certifications of conformance: EN 60950/IEC 60950, ISO-7816,PC/SC, CE, FCC, CCID, Microsoft WHQL and EMV 2000 level 1

Specifications:

Dimensions: (L) 58.0 x (W) 20 x (H) 13.7mm
Weight: 12.0g
Interface: USB 2.0 full speed
Supply voltage: regulated 5V DC
Supply current: 50mA
Operating temperature: 0 to 50°C
CLK frequency: 4MHz
MTBF: 500,000 hours
Smart card interface supports ISO-7816 class A, B and C (5, 3,1.8V)
Certifications: EN 60950/IEC 60950, PC/SC, CCID, CE, FCC andUSB full speed
Microsoft WHQL: 2000, 2003, XP, Vista, 2008, 2008 R2 and 7
Operating system: Microsoft Windows 98, Win ME, Win NT 4.0, Win2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7 Win2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64,Win 2008 R2 x64 and Win 7 x64 Mac Linux

Supports ISO 7816 class A, B and C (5, 3, 1.8V) cards

Performs read and write operations on all microprocessor cardswith 0/1 T protocols

Supports most of popular memory card types in market

Atmel: AT24C01/02/04/08/16/32/64/128/256/512/1024

SGS-Thomson: ST14C02C and ST14C04C

Gem plus: GFM1K, GFM2K, GFM4K and GFM8K

Cards with intelligent 256 bytes EEPROM and write protectfunctions: SLE4432, SLE4442, SLE5532 and SLE5542

Cards with intelligent 1K bytes EEPROM and write-protectfunctions: SLE4418, SLE4428, SLE5518 and SLE5528

Cards with 104 type of EEPROM (non-reloadable token countercards): SLE4406, SLE4436, SLE5536 and SLE6636

Cards with secure memory IC with password and authentication:AT88SC153 and AT88SC1608

Cards with intelligent 416-bit EEPROM with internal PIN check:SLE4404

Cards with security logic with application zone: AT88SC101,AT88SC102 and AT88SC1003

Supports PPS (protocol and parameters selection)

Short-circuit protection

RoHS Directive-compliant

Certifications of conformance: EN 60950/IEC 60950, ISO-7816,PC/SC, CE, FCC, CCID, Microsoft WHQL and EMV 2000 level 1

Dimensions: (L) 58.0 x (W) 20 x (H) 13.7mm

Weight: 12.0g

Interface: USB 2.0 full speed

Supply voltage: regulated 5V DC

Supply current: 50mA

Operating temperature: 0 to 50°C

CLK frequency: 4MHz

MTBF: 500,000 hours

Smart card interface supports ISO-7816 class A, B and C (5, 3,1.8V)

Certifications: EN 60950/IEC 60950, PC/SC, CCID, CE, FCC andUSB full speed

Microsoft WHQL: 2000, 2003, XP, Vista, 2008, 2008 R2 and 7

Operating system: Microsoft Windows 98, Win ME, Win NT 4.0, Win2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7 Win2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64,Win 2008 R2 x64 and Win 7 x64 Mac Linux
