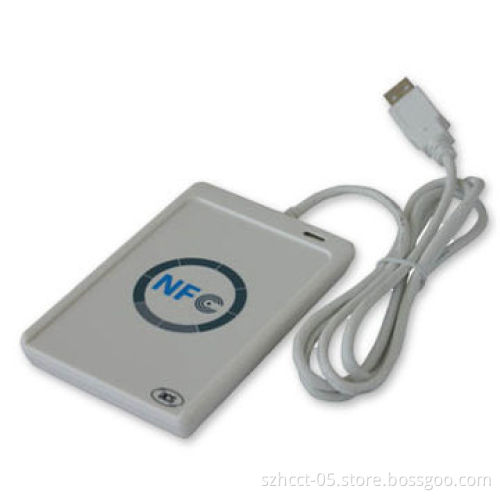

NFC Card Reader, 12Mbps USB Full Speed and 13.56MHz Operating Frequency
  • NFC Card Reader, 12Mbps USB Full Speed and 13.56MHz Operating Frequency
NFC Card Reader, 12Mbps USB Full Speed and 13.56MHz Operating Frequency

NFC Card Reader, 12Mbps USB Full Speed and 13.56MHz Operating Frequency

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • USB PnP
    • Bi-color LED
    • Built-in antenna
    • Contactless smart card reader
    • Supports FeliCa card
    • User controllable buzzer (optional)
    • SAM socket (optional)
    • Standards: ISO/IEC18092, ISO 14443 type A and B cards, Mifare cards (classics, DES fire)
    • Certifications: CCID, CE and FCC
    • RoHS Directive-compliant
  • Specifications:
    • Voltage: 5V DC
    • Current:
      • Maximum: 200mA
      • Normal: 100mA
    • Operating frequency: 13.56MHz
    • USB full speed: 12Mbps
    • NFC tags access speed: 424kbps
    • Operating distance: ≤50mm
    • Operating temperature: 0 to 50°C
    • Operating systems: Microsoft Windows 2000, 2003, XP 32, XP64, Vista 32 and Vista 64
    • Size: 98 x 65 x 12.8mm
    • Weight: 70g
  • USB PnP
  • Bi-color LED
  • Built-in antenna
  • Contactless smart card reader
  • Supports FeliCa card
  • User controllable buzzer (optional)
  • SAM socket (optional)
  • Standards: ISO/IEC18092, ISO 14443 type A and B cards, Mifare cards (classics, DES fire)
  • Certifications: CCID, CE and FCC
  • RoHS Directive-compliant
  • Voltage: 5V DC
  • Current:
    • Maximum: 200mA
    • Normal: 100mA
  • Operating frequency: 13.56MHz
  • USB full speed: 12Mbps
  • NFC tags access speed: 424kbps
  • Operating distance: ≤50mm
  • Operating temperature: 0 to 50°C
  • Operating systems: Microsoft Windows 2000, 2003, XP 32, XP64, Vista 32 and Vista 64
  • Size: 98 x 65 x 12.8mm
  • Weight: 70g
  • Maximum: 200mA
  • Normal: 100mA
