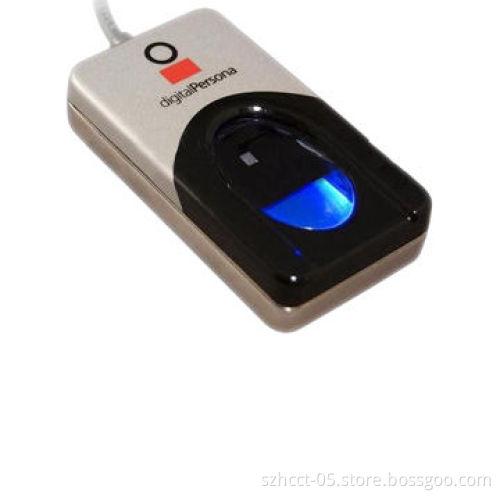

Fingerprint Reader with Superior ESD Resistance and Latent Print Rejection
  • Fingerprint Reader with Superior ESD Resistance and Latent Print Rejection
Fingerprint Reader with Superior ESD Resistance and Latent Print Rejection

Fingerprint Reader with Superior ESD Resistance and Latent Print Rejection

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Blue LED
    • Small form factor
    • Good-quality image
    • Superior ESD resistance
    • Encrypted fingerprint data
    • Latent print rejection
    • Counterfeit finger rejection
    • Rotation invariant
    • Rugged
    • Works well with dry, moist or roughfingerprints
  • Specifications:
    • SDK support VC++, C++ builder, Delphi, VB, visual Foxpro, PB,C# and VB.net
    • Pixel resolution: 512dpi (average X, Y over scan area)
    • Scan data: 8-bit gray scale (256 levels of gray)
    • Scan capture area: 14.6mm (nominal width at center) and 18.1mm(nominal length)
    • Reader size (approximately): 70 x 33 x 15mm
    • Compatible USB 1.0, 1.1 and 2.0 (full speed)specifications
    • Operating temperature: 0 to 40°C
    • Storage temperature: -10 to 60°C
    • Operating humidity: 20 to 80% RH (non-condensing)
    • Storage humidity: 20 to 90% RH (non-condensing)
    • Supply voltage: 5.0V ±5% supplied by USB
    • Supply current:
      • Scanning: 190mA (typical)
      • Idle mode: 140mA (typical)
      • Suspend mode: 1.5mA (maximum)
    • ESD susceptibility: >15kV, mounted incase
  • Blue LED
  • Small form factor
  • Good-quality image
  • Superior ESD resistance
  • Encrypted fingerprint data
  • Latent print rejection
  • Counterfeit finger rejection
  • Rotation invariant
  • Rugged
  • Works well with dry, moist or roughfingerprints
  • SDK support VC++, C++ builder, Delphi, VB, visual Foxpro, PB,C# and VB.net
  • Pixel resolution: 512dpi (average X, Y over scan area)
  • Scan data: 8-bit gray scale (256 levels of gray)
  • Scan capture area: 14.6mm (nominal width at center) and 18.1mm(nominal length)
  • Reader size (approximately): 70 x 33 x 15mm
  • Compatible USB 1.0, 1.1 and 2.0 (full speed)specifications
  • Operating temperature: 0 to 40°C
  • Storage temperature: -10 to 60°C
  • Operating humidity: 20 to 80% RH (non-condensing)
  • Storage humidity: 20 to 90% RH (non-condensing)
  • Supply voltage: 5.0V ±5% supplied by USB
  • Supply current:
    • Scanning: 190mA (typical)
    • Idle mode: 140mA (typical)
    • Suspend mode: 1.5mA (maximum)
  • ESD susceptibility: >15kV, mounted incase
  • Scanning: 190mA (typical)
  • Idle mode: 140mA (typical)
  • Suspend mode: 1.5mA (maximum)
