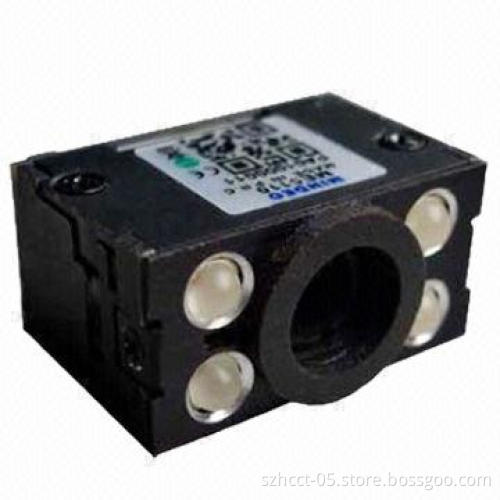

Image Barcode Scan Engine with 8mA Standby Current

Get Latest Price

Payment Type:: T/T, L/C, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

Features:

The decode board provides a ZIF 12-pin connector to connect toa 0.5 x 12 position FFC/FPC cable
The scan engine has one normal power state, the run state, andthree low-power states (idle, standby and sleep) and there are fivecontrol parameters

Specifications:

Input voltage: 3.3V DC ±5%
Scanning current:
- Typical: 360mA
- Maximum: 386mA
Standby current: 8mA
Image size: 752 x 480 pixels
Scanning angles: ±60°, ±40°,±42° (skew, pitch, roll)
Decode capability:
- 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN),ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39,Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar(NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar(formerly RSS) variants
- 2D: PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code,Aztec Code Indicator Interface to control external beeper andLED
Interface supported: RS-232 (3.3V TTL-level)
Scan mode: good-read off, momentary, alternate, continuous,time-out off, host
Dimensions (H x W x D):
- Image module: 10.0 x 20.0 x 16.2mm
- Decode board: 23.3 x 38.4 x 7.9mm
Weight:
- Image module: 8g
- Decode board: 7g
Cable: tapered 12-pin flex strip (12 x 0.5mm)
Minimum element width: 3.5mil, 1mil = 0.0254mm
Decoding depth:
- 3.5mil Code128 (9 chars): 1.5cm 3.5cm
- 5mil Code39 (20 chars): 0.8cm 5.5cm
- 13mil UPC (12 chars): 0.7cm 16.5cm
- 20mil Code39 (5 chars): 3.5cm 21.0cm
- 6.7mil PDF417 (20 chars): 0.0cm 7.5cm
- 10mil DM (20 chars): 0.0cm 11.5cm
- 20mil QR (20 chars): 0.0cm 19.5cm
Operating temperature: -10 to 60°C (-4 to 140°F)

The decode board provides a ZIF 12-pin connector to connect toa 0.5 x 12 position FFC/FPC cable

The scan engine has one normal power state, the run state, andthree low-power states (idle, standby and sleep) and there are fivecontrol parameters

Input voltage: 3.3V DC ±5%

Scanning current:

Typical: 360mA
Maximum: 386mA

Standby current: 8mA

Image size: 752 x 480 pixels

Scanning angles: ±60°, ±40°,±42° (skew, pitch, roll)

Decode capability:

1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN),ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39,Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar(NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar(formerly RSS) variants
2D: PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code,Aztec Code Indicator Interface to control external beeper andLED

Interface supported: RS-232 (3.3V TTL-level)

Scan mode: good-read off, momentary, alternate, continuous,time-out off, host

Dimensions (H x W x D):

Image module: 10.0 x 20.0 x 16.2mm
Decode board: 23.3 x 38.4 x 7.9mm

Weight:

Image module: 8g
Decode board: 7g

Cable: tapered 12-pin flex strip (12 x 0.5mm)

Minimum element width: 3.5mil, 1mil = 0.0254mm

Decoding depth:

3.5mil Code128 (9 chars): 1.5cm 3.5cm
5mil Code39 (20 chars): 0.8cm 5.5cm
13mil UPC (12 chars): 0.7cm 16.5cm
20mil Code39 (5 chars): 3.5cm 21.0cm
6.7mil PDF417 (20 chars): 0.0cm 7.5cm
10mil DM (20 chars): 0.0cm 11.5cm
20mil QR (20 chars): 0.0cm 19.5cm

Operating temperature: -10 to 60°C (-4 to 140°F)

Typical: 360mA

Maximum: 386mA

1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN),ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39,Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar(NW7), Code 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, China Finance, GS1 DataBar(formerly RSS) variants

2D: PDF417, MicroPDF417, QR Code, DataMatrix, Han Xin Code,Aztec Code Indicator Interface to control external beeper andLED

Image module: 10.0 x 20.0 x 16.2mm

Decode board: 23.3 x 38.4 x 7.9mm

Image module: 8g

Decode board: 7g

3.5mil Code128 (9 chars): 1.5cm 3.5cm

5mil Code39 (20 chars): 0.8cm 5.5cm

13mil UPC (12 chars): 0.7cm 16.5cm

20mil Code39 (5 chars): 3.5cm 21.0cm

6.7mil PDF417 (20 chars): 0.0cm 7.5cm

10mil DM (20 chars): 0.0cm 11.5cm

20mil QR (20 chars): 0.0cm 19.5cm
