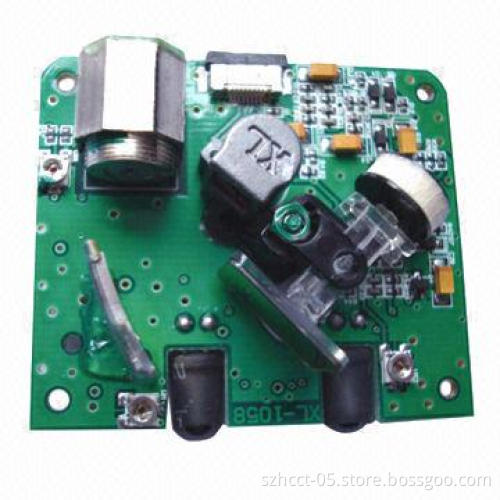

Scanner Engine, 53° Scan Angle
  • Scanner Engine, 53° Scan Angle
Scanner Engine, 53° Scan Angle

Scanner Engine, 53° Scan Angle

Get Latest Price
Payment Type:
T/T, L/C, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, PayPal or Western Union
Product Description
Product Description
  • Features:
    • Automatic scan sensor (optional)
    • Can read all kinds of standard 1D barcodes
    • Easy to be integrated with all kinds of OEM equipment
    • Standard 8-pin interface
    • Reading depth of field
    • Meets compact design of human engineering
  • Specifications:
    • Performance
    • Light source: visible laser diode 650nm
    • Scan pattern: mongline scan
    • Scanning speed: 48 times/second
    • Scan precision: 0.10mm (PCS0.9)
    • Scan width: 60 at 50 and 160 at 150mm
    • Scan depth of field: 25 to 250mm (0.33mm PCS 90%)
    • Scan angle: 53°
    • Tilt: 30°
    • Elevation angle: 65°
    • Deflection angle: 55°
    • Printing contrast: 30% UPC or EAN 100%
    • Laser energy: 0.7mW
    • Size: (L) 49 x (W) 41 x (H) 17mm
    • Weight: 23g
    • Voltage: 5V DC
    • Power consumption: 46mA
    • Laser class: FCC class A and CISPR class A
    • Laser safety performance: meet grade II national criteria forlasers safety
    • Environment:
      • Operating temperature: 0 to 45°
      • Storage temperature: -20 to 60°
    • Humidity: 5% to 95%
    • Non-condensing
    • Light Levels daylight: 7000lux
    • 8-pin ZIF adaptor: industry standard output
  • Remarks:
    • GND ground
    • GND ground
    • SOS frame signal
    • Data serial data
    • Trig scan touch
    • Laser EN enable
    • NC not connection
  • Automatic scan sensor (optional)
  • Can read all kinds of standard 1D barcodes
  • Easy to be integrated with all kinds of OEM equipment
  • Standard 8-pin interface
  • Reading depth of field
  • Meets compact design of human engineering
  • Performance
  • Light source: visible laser diode 650nm
  • Scan pattern: mongline scan
  • Scanning speed: 48 times/second
  • Scan precision: 0.10mm (PCS0.9)
  • Scan width: 60 at 50 and 160 at 150mm
  • Scan depth of field: 25 to 250mm (0.33mm PCS 90%)
  • Scan angle: 53°
  • Tilt: 30°
  • Elevation angle: 65°
  • Deflection angle: 55°
  • Printing contrast: 30% UPC or EAN 100%
  • Laser energy: 0.7mW
  • Size: (L) 49 x (W) 41 x (H) 17mm
  • Weight: 23g
  • Voltage: 5V DC
  • Power consumption: 46mA
  • Laser class: FCC class A and CISPR class A
  • Laser safety performance: meet grade II national criteria forlasers safety
  • Environment:
    • Operating temperature: 0 to 45°
    • Storage temperature: -20 to 60°
  • Humidity: 5% to 95%
  • Non-condensing
  • Light Levels daylight: 7000lux
  • 8-pin ZIF adaptor: industry standard output
  • Operating temperature: 0 to 45°
  • Storage temperature: -20 to 60°
  • GND ground
  • GND ground
  • SOS frame signal
  • Data serial data
  • Trig scan touch
  • Laser EN enable
  • NC not connection
