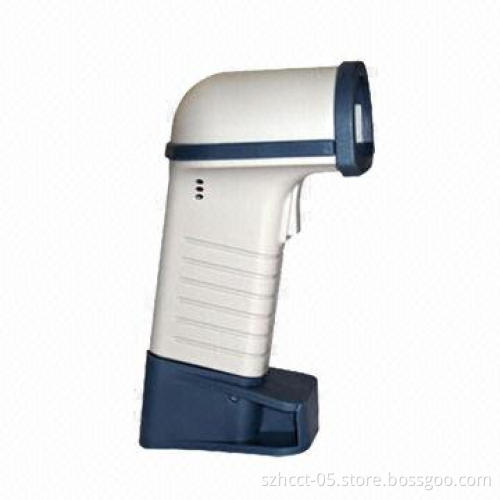

OBM-320B Bluetooth Barcode Scanner
  • OBM-320B Bluetooth Barcode Scanner
OBM-320B Bluetooth Barcode Scanner

OBM-320B Bluetooth Barcode Scanner

Get Latest Price
Payment Type:
T/T, L/C, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, PayPal or Western Union
Product Description
Product Description
  • OBM-320B Bluetooth scanner is a handheld barcode recognition device based on the international standard Bluetooth protocol (HID and SPP)
  • Mainly used with portable devices such as mobile phone, tablet and PC
  • Compared with the traditional corded equipment, OBM-320B is more convenient, fast and applicable
  • Features:
    • Common 1D barcode recognition
    • Standard Bluetooth 2.1 protocol supported (HID and SPP)
    • Transmission distance reaches 30 meters in open area
    • Suitable for Bluetooth protocol (HID and SPP) supported data terminals and handheld devices
    • Detachable large capacity lithium polymer battery
    • Barcode reading stops automatically when out of signal or being disconnected to avoid misoperation
    • Ergonomic design
  • Specifications:
    • Physical dimensions: 140mm(H)*78mm(D)*58(W)
    • Weight: 212g (with battery)
    • Battery: 1,500mAh lithium-ion polymer battery
    • Charging time: 4.5 hours
    • Performance:
      • Light source: 650Nm laser
      • Scanning angle: elevation
      • Resolution: 0.1mm (minimum)
      • Scan rate: 50 scans/sec
      • Supported barcode: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI
    • Standby current: 60mAh
    • Working current: 120mAh, 480mW
    • Physical dimensions: 80x60x160mm
    • Material: ABS
    • Weight: 240g
    • Environment:
      • Working temperature: -4°F to 122°F, -20°C to 5°C
      • Storage temperature: -40°F to 158°F, -40°C to 7°C
      • Working humidity: 5% to 95%, non-condensing
    • Impact test: 30 times drop from 1.2m
    • Lumination: 86000lux
    • Anti-static
    • 15kV air discharge, 8kV contact discharge
    • Bluetooth standard:
      • Frequency: 2.402 to 2.480GHz
      • Transmission rate: 2Mkbps
      • Transmission distance: 300m (open area)
    • Charging:
      • Input: AC 100-240V, 50/60Hz, 0.3A
      • Output: DC 5V, 1,000mA
    • Interface: mini-USB
    • Certification: 3C
  • Safety:
    • Electrical equipment safety: UL60950-1, CSA C22.2 No. 60950-1, EN 60950-1/IEC 60950-1
    • Laser safety: EN 60825-1, IEC 60825-1, 21CFR1040.10, CDRH Class II, IEC Class 2
    • Electromagnetic compatibility: FCC Part 15 Class B, ICES-003 Class B, EN 55022, EN 55024, AS/NZS4268:2008, Japan VCCI
    • Environmental safety: compliant with RoHS Directive 2002/95/EEC
  • Model description:
    • First insert the battery into the scanner body, then ram the scanner base
  • Common 1D barcode recognition
  • Standard Bluetooth 2.1 protocol supported (HID and SPP)
  • Transmission distance reaches 30 meters in open area
  • Suitable for Bluetooth protocol (HID and SPP) supported data terminals and handheld devices
  • Detachable large capacity lithium polymer battery
  • Barcode reading stops automatically when out of signal or being disconnected to avoid misoperation
  • Ergonomic design
  • Physical dimensions: 140mm(H)*78mm(D)*58(W)
  • Weight: 212g (with battery)
  • Battery: 1,500mAh lithium-ion polymer battery
  • Charging time: 4.5 hours
  • Performance:
    • Light source: 650Nm laser
    • Scanning angle: elevation
    • Resolution: 0.1mm (minimum)
    • Scan rate: 50 scans/sec
    • Supported barcode: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI
  • Standby current: 60mAh
  • Working current: 120mAh, 480mW
  • Physical dimensions: 80x60x160mm
  • Material: ABS
  • Weight: 240g
  • Environment:
    • Working temperature: -4°F to 122°F, -20°C to 5°C
    • Storage temperature: -40°F to 158°F, -40°C to 7°C
    • Working humidity: 5% to 95%, non-condensing
  • Impact test: 30 times drop from 1.2m
  • Lumination: 86000lux
  • Anti-static
  • 15kV air discharge, 8kV contact discharge
  • Bluetooth standard:
    • Frequency: 2.402 to 2.480GHz
    • Transmission rate: 2Mkbps
    • Transmission distance: 300m (open area)
  • Charging:
    • Input: AC 100-240V, 50/60Hz, 0.3A
    • Output: DC 5V, 1,000mA
  • Interface: mini-USB
  • Certification: 3C
  • Light source: 650Nm laser
  • Scanning angle: elevation
  • Resolution: 0.1mm (minimum)
  • Scan rate: 50 scans/sec
  • Supported barcode: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI
  • Working temperature: -4°F to 122°F, -20°C to 5°C
  • Storage temperature: -40°F to 158°F, -40°C to 7°C
  • Working humidity: 5% to 95%, non-condensing
  • Frequency: 2.402 to 2.480GHz
  • Transmission rate: 2Mkbps
  • Transmission distance: 300m (open area)
  • Input: AC 100-240V, 50/60Hz, 0.3A
  • Output: DC 5V, 1,000mA
  • Electrical equipment safety: UL60950-1, CSA C22.2 No. 60950-1, EN 60950-1/IEC 60950-1
  • Laser safety: EN 60825-1, IEC 60825-1, 21CFR1040.10, CDRH Class II, IEC Class 2
  • Electromagnetic compatibility: FCC Part 15 Class B, ICES-003 Class B, EN 55022, EN 55024, AS/NZS4268:2008, Japan VCCI
  • Environmental safety: compliant with RoHS Directive 2002/95/EEC
  • First insert the battery into the scanner body, then ram the scanner base
