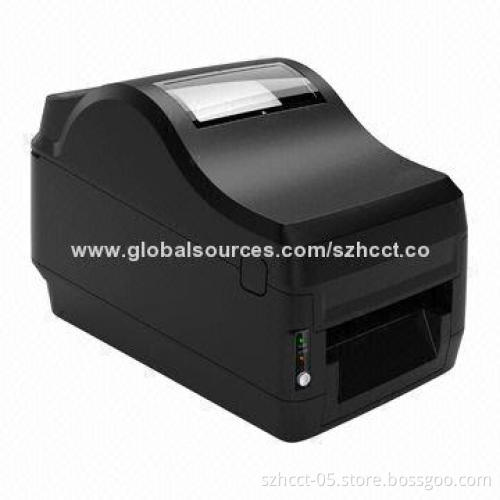

HLG-816 Barcode Printer with 203dpi Resolution, Print Speed of 76.2-127mm/Second

Get Latest Price

Payment Type:: T/T, L/C, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

Resolution: 203dpi

Methods: thermal, thermal transfer

Print speed: 76.2-127mm/second

Print width: 25 m (1-inch) - 104mm (4.10-inch)

Print length: 12 - 2,000mm

Paper width: 118mm

Printer size: 380 * 250 * 220mm

Specifications of label:

Reel inner: 8-inch
Central spindle: 30mm (1-inch)/40mm (1.5-inch)/76.2mm (3-inch)
Paper thickness: 0.06 -0.25mm
Paper roll length: 180m (unique huge storage of paper)

Specifications of ribbon:

Type: the volume type
Outer diameter: 64mm
Central spindle: 25.4mm (1 inch)
Width: 30 - 110mm
Length: 300m

Materials: general wax type, mixed type, scraping resistance, resin type

Paper detector: back rubber label paper, between the black, mark paper, continuous or folding label paper, no receipt of back glue paper, label length manually or automatically detects command forces control, reflection and transmission

Font: all fonts in windows system

Memory: 16MB

Flash: 8MB

Image: PCX, BMP, the control software can support the ICO, WMF, JPG, EMF, through software control chart can be form for any size amplification, narrow, rotation, mirror and white

Barcode: code 39, 93 128, UCC - 128, post net, coda bar, UPC-A, UPC - E, ENA - 128, interleaved 2 of 5, EAN - 8, add 2, add 5, maxi code, PDF417 drug regulatory codes, electronic supervision code, such as mail barcode all bar code via software

Environment: 5 to 40°C

Temperature: -20 to 50°C

Input power: 100/240V AC, 50/60Hz (AC/DC switching power supply automatically)

Interface: USB

LED: ready, status

Control button: feed

Driver: Microsoft's Windows 95, 98, Me, NT4.0, 2000, XP, 7, 8

Reel inner: 8-inch

Central spindle: 30mm (1-inch)/40mm (1.5-inch)/76.2mm (3-inch)

Paper thickness: 0.06 -0.25mm

Paper roll length: 180m (unique huge storage of paper)

Type: the volume type
