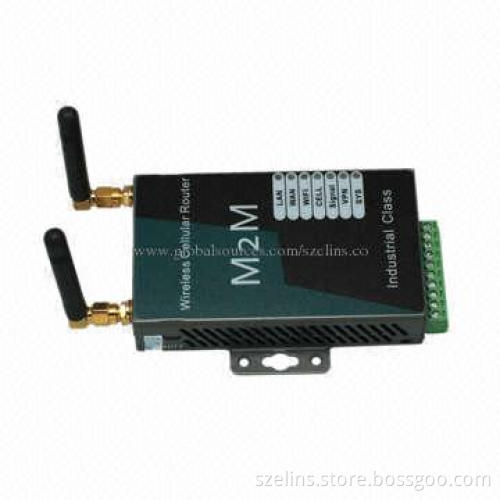

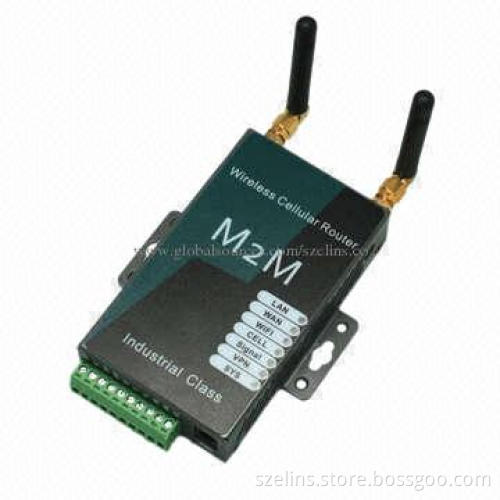

E-Lins EDGE Router with SIM Card Slot and Wi-Fi GSP/RS232 RS485 Serial

E-Lins EDGE Router with SIM Card Slot and Wi-Fi GSP/RS232 RS485 Serial

Get Latest Price

Payment Type:: T/T, L/C, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or PayPal

Product Description

Built-in EDGE industrial cellular module and SIM card slot, insert SIM/UIM card to work directly

Supports EDGE/GPRS/GSM networks

Speed: download-384kbps, upload-384kbps

RJ45 WAN, cellular and Wi-Fi client three lines fail over feature

Auto-dial feature, keeps alive link and built-in watch dog

Easy to configure through friendly web interface management console, Telnet/SSH/CLI, supported and supports remote management

Wi-Fi (WLAN): 802.11b/g/n 150Mbps, secured connection through WEP 64/128-bit encryption, WPA-PSK/WPS2-PSK and WPS

WAN supports cell/static IP/DHCP/PPPoE (on demand, keeps alive, schedule and manual)

NAT/NAPT/port forwarding/DMZ, built-in firewall, packets filter and port redirection

DHCP/DNS proxy, DDNS, VRRP, NTP

SMS/voice call to control router to be online, offline, reboot and check status

LED indicator * 7 (SYS*1, VPN * 1, cell signal * 1, cell * 1, WAN * 1, LAN * 1 and WiFi * 1)

VPN (PPTP, L2TP, IPsec, GRE and tunnel)

SNMP V1, V2 and V3

VLAN

Supports firmware update locally or remotely (LAN, Wi-Fi and OTA WAN)

Local and remote system log

WAN/LAN/Memory statistics

Local/remote profiles backup and retrieve

No installation required

Optional features:

GPS
Serial RS232/RS485
Route: static route, optional for static route (BGP, BGPD, OSPF, zebra and rip)
Management system

Ports:

1 * DC power input, 1 * terminal block for power input (5 to 40V default, 5 to 50V option)
1 * Ethernet RJ45: 10/100Mbps
1 * WAN RJ45: 10/100Mbps (WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45)
Serial RS232 or RS485 with DB9 connector (option)
4 * SMA antenna connector maximum (main cellular, Aux cellular, Wi-Fi and GPS)
SIM card slot

Operating system: Windows 8, 7, Vista, XP SP2, 2000 SP4 or Mac OS X (V10.4/10.3), Linux, other OS supports internet browser

Weight and dimensions:
    PCBA: 156mm x 104mm x 20mm
    With case: 168mm x 104mm x 25mm
    455g (not including the antenna)
    550g (including the antenna)
    850g (including all accessories, without package)

Color and case: metal gray-black, OEM welcomed

Brand: E-Lins, Neutral White-brand, or OEM

Standard packing contents:

H685 series wireless router
CAT 5e Ethernet cable
Power adapter
Antenna
Others depends on optional features

GPS

Serial RS232/RS485

Route: static route, optional for static route (BGP, BGPD, OSPF, zebra and rip)

Management system

1 * DC power input, 1 * terminal block for power input (5 to 40V default, 5 to 50V option)

1 * Ethernet RJ45: 10/100Mbps

1 * WAN RJ45: 10/100Mbps (WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45)

Serial RS232 or RS485 with DB9 connector (option)

4 * SMA antenna connector maximum (main cellular, Aux cellular, Wi-Fi and GPS)

SIM card slot

H685 series wireless router

CAT 5e Ethernet cable

Power adapter

Antenna

Others depends on optional features
