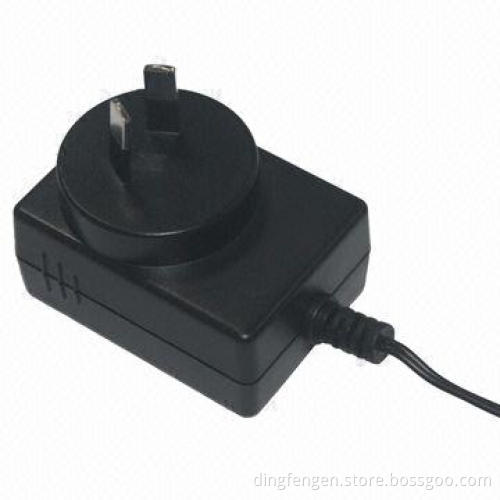

12W AU Switching Adapter for LED lighting, with Input Voltage Ranging from 90 to 264V AC

Get Latest Price

Payment Type:: T/T, L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Description:

Wall mount type
Meet CEC regulations
Compliant with RoHS Directive
Efficiency level-V

General specification:

Maximum output power: 12W
Input voltage: 90 to 264V AC
Input frequency: 47 to 63Hz
Input current: 0.36A
No-load power consumption: less than 0.3W
Efficiency: meet CEC
Ripple noise (maximum): +1% voltage
Line regulation: ±1%
Load regulation: ±5%
Hold-up time: 16ms
Over voltage protection: 120%
Operating temperature: 0 to 40°C
Storage temperature: -20 to 85°C
Storage humidity: 5 to 90% RH
Withstand voltage: 3kV AC
Burn-in test: 100% full load
MTBF: 50,000 hours
Weight: about 120g
Dimension (L x W x H): 60 x 44 x 26mm
Output power: 12W maximum
Output voltage: 3 to 21V

Output specification:

GFP121A-050200-1, 5.0 to 5.9V 0.01 to 2.0A
GFP121A-060200-1, 6V 0.01 to 2.0A
GFP121A-066180-1, 6.6V 0.01 to 1.8A
GFP121A-067175-1, 6.7 to 6.8V 0.01 to 1.75A
GFP121A-070160-1, 7.0 to 7.5V 0.01 to 1.6A
GFP121A-090130-1, 9V 0.01 to 1.3A
GFP121A-091125-1, 9.1 to 9.4V 0.01 to 1.25A
GFP121A-095120-1, 9.5V to 9.9V 0.01 to 1.20A
GFP121A-120100-1, 12V 0.01 to 1.0A
GFP121A-121095-1, 12.1 to 12.5V 0.01 to 0.95A
GFP121A-126090-1, 12.6 to 12.9V 0.01 to 0.9A
GFP121A-130090-1, 13 to 13.3V 0.01 to 0.9A
GFP121A-134085-1, 13.4 to 13.9V 0.01 to 0.85A
GFP121A-140085-1, 14 to 14.9V 0.01 to 0.85A
GFP121A-150080-1, 15V 0.01 to 0.8A
GFP121A-151075-1, 15.1 to 15.9V 0.01 to 0.75A
GFP121A-160075-1, 16V 0.01 to 0.75A
GFP121A-161070-1, 16.1 to 16.9V 0.01 to 0.70A
GFP121A-180060-1, 18 to 18.9V 0.01 to 0.60A

Wall mount type

Meet CEC regulations

Compliant with RoHS Directive

Efficiency level-V

Maximum output power: 12W

Input voltage: 90 to 264V AC

Input frequency: 47 to 63Hz

Input current: 0.36A

No-load power consumption: less than 0.3W

Efficiency: meet CEC

Ripple noise (maximum): +1% voltage

Line regulation: ±1%

Load regulation: ±5%

Hold-up time: 16ms

Over voltage protection: 120%

Operating temperature: 0 to 40°C

Storage temperature: -20 to 85°C

Storage humidity: 5 to 90% RH

Withstand voltage: 3kV AC

Burn-in test: 100% full load

MTBF: 50,000 hours

Weight: about 120g

Dimension (L x W x H): 60 x 44 x 26mm

Output power: 12W maximum

Output voltage: 3 to 21V

GFP121A-050200-1, 5.0 to 5.9V 0.01 to 2.0A

GFP121A-060200-1, 6V 0.01 to 2.0A

GFP121A-066180-1, 6.6V 0.01 to 1.8A

GFP121A-067175-1, 6.7 to 6.8V 0.01 to 1.75A

GFP121A-070160-1, 7.0 to 7.5V 0.01 to 1.6A

GFP121A-090130-1, 9V 0.01 to 1.3A

GFP121A-091125-1, 9.1 to 9.4V 0.01 to 1.25A

GFP121A-095120-1, 9.5V to 9.9V 0.01 to 1.20A

GFP121A-120100-1, 12V 0.01 to 1.0A

GFP121A-121095-1, 12.1 to 12.5V 0.01 to 0.95A

GFP121A-126090-1, 12.6 to 12.9V 0.01 to 0.9A

GFP121A-130090-1, 13 to 13.3V 0.01 to 0.9A

GFP121A-134085-1, 13.4 to 13.9V 0.01 to 0.85A

GFP121A-140085-1, 14 to 14.9V 0.01 to 0.85A

GFP121A-150080-1, 15V 0.01 to 0.8A

GFP121A-151075-1, 15.1 to 15.9V 0.01 to 0.75A

GFP121A-160075-1, 16V 0.01 to 0.75A

GFP121A-161070-1, 16.1 to 16.9V 0.01 to 0.70A

GFP121A-180060-1, 18 to 18.9V 0.01 to 0.60A
