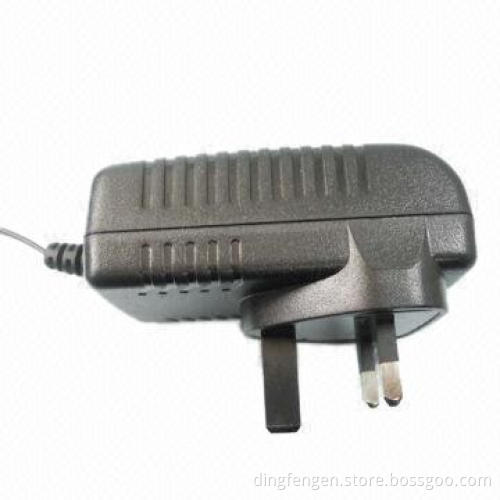

UK plug power adapter with BS, GS and TUV approvals, 18W, 5V/9V/12V output

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

External power supplies:

Light, extra slim, sleek, compact design
Green power, full complies with CEC level V, MEPS IV EUP2011
High power density
Extra safe design, have got their respective safety approvals
Completed protect function

Suitable for an extremely wide range of applications:

Mobile devices
Printer
PoS
Audio and video product
Hard disk drive
Set-top-box
Household appliance

Input:

Input voltage: 90 to 264V AC
Frequency: 47-50/60-63Hz
Input current: 0.4A (maximum) 100/240V AC
Inrush current:
- 50A maximum 100V AC at maximum load
- 60A maximum 240V AC at maximum load
Leakage current: 0.25mA maximum

Output:

5-24V, 18W maximum
Over voltage protection
Over current protection at 110-200% of lo and auto-recovery
Electronic short circuit protection
Operating temperature: 0-40°C free convection
Operating humidity: 10-80% RH non condensing
Sea level non-operating temperature: -20-80°C

Safety standards:

IEC/EN 60950-1:2005 (2nd Edition) + A1:2009
IEC/EN 60065:2001 + A1:2005 + A2:2010
GB4943-2001, GB8898-2001
K60950-1
AS/NZS.60950.1:2003inc Amdt1, 2, 3
AS/NZS.60065:2003inc Amdt. 1

Certificates and approvals: CB, GS, CE, UL, CCC, BEAB, FCC, PSE C-TICK, KC

Light, extra slim, sleek, compact design

Green power, full complies with CEC level V, MEPS IV EUP2011

High power density

Extra safe design, have got their respective safety approvals

Completed protect function

Mobile devices

Printer

PoS

Audio and video product

Hard disk drive

Set-top-box

Household appliance

Input voltage: 90 to 264V AC

Frequency: 47-50/60-63Hz

Input current: 0.4A (maximum) 100/240V AC

Inrush current:

50A maximum 100V AC at maximum load
60A maximum 240V AC at maximum load

Leakage current: 0.25mA maximum

50A maximum 100V AC at maximum load

60A maximum 240V AC at maximum load

5-24V, 18W maximum

Over voltage protection

Over current protection at 110-200% of lo and auto-recovery

Electronic short circuit protection

Operating temperature: 0-40°C free convection

Operating humidity: 10-80% RH non condensing

Sea level non-operating temperature: -20-80°C

IEC/EN 60950-1:2005 (2nd Edition) + A1:2009

IEC/EN 60065:2001 + A1:2005 + A2:2010

GB4943-2001, GB8898-2001

K60950-1

AS/NZS.60950.1:2003inc Amdt1, 2, 3

AS/NZS.60065:2003inc Amdt. 1
