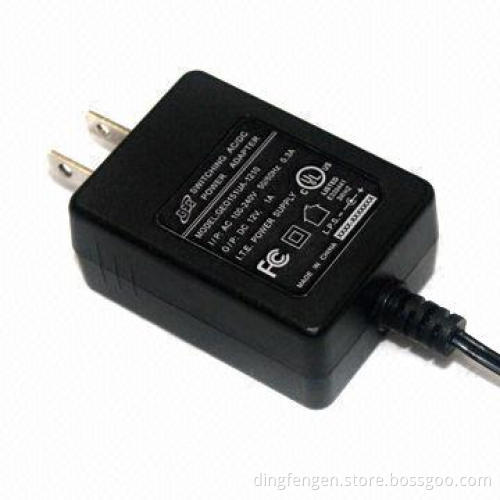

5W US Plug-in Adapter with 3 to 24V Output Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Input voltage: 100 to 240V AC, 50/60Hz

Range voltage: 90 to 264V AC, 47/63Hz

Output power: 5W

Output voltage: 3 to 24V

Over-voltage protection: 120% (minimum)

Over-current protection: 120% (minimum)

Short protection: auto-recovery

Load regulation: ±5%

Temperature:

Operating relative humidity: 5 to 95%

Withstanding voltage: 3000V AC (minimum), 5mA (maximum)

Insulation resistance: 500V DC, 100MΩ (minimum)

Specifications:

G051U-030120-1 (3V/1.2A)
G051U-033120-1 (3.3V/1.2A)
G051U-042070-1 (4.2V/0.7A)
G051U-042120-1 (4.2V/1.2A)
G051U-045050-1 (4.5V/0.5A)
G051U-045100-1 (4.5V/1A)
G051U-050050-1 (5V/0.5A)
G051U-050100-1 (5V/1.0A)
G051U-060050-1 (6V/0.5A)
G051U-060100-1 (6V/1.0A)
G051U-075080-1 (7.5V/0.8A)
G051U-090065-1 (9V/0.65A)
G051U-120050-1 (12V/0.5A)
G051U-150040-1 (15V/0.4A)
G051U-240020-1 (24V/0.25A)

Safety: UL, PSE, CCC, CE, FCC, BSMI, CEC ERP/efficiency level: V

Dimensions: (L) 45.5 x (W) 33 x (H) 23.4mm

Operating: 0 to 40°C

Storage: -20 to 85°C

G051U-030120-1 (3V/1.2A)

G051U-033120-1 (3.3V/1.2A)

G051U-042070-1 (4.2V/0.7A)

G051U-042120-1 (4.2V/1.2A)

G051U-045050-1 (4.5V/0.5A)

G051U-045100-1 (4.5V/1A)

G051U-050050-1 (5V/0.5A)

G051U-050100-1 (5V/1.0A)

G051U-060050-1 (6V/0.5A)

G051U-060100-1 (6V/1.0A)

G051U-075080-1 (7.5V/0.8A)

G051U-090065-1 (9V/0.65A)

G051U-120050-1 (12V/0.5A)

G051U-150040-1 (15V/0.4A)

G051U-240020-1 (24V/0.25A)
