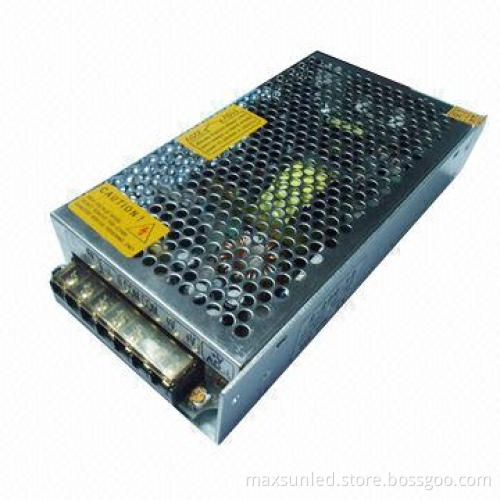

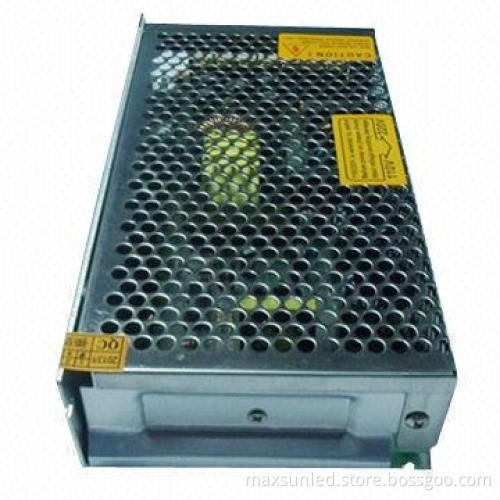

24V/4.2A/100W/220V turn switch power supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union or MoneyGram

Product Description

Key specifications:

Input voltage: 90 to 264V AC
Input frequency: 47 to 63Hz
Input surge: cold time 20A at 120V AC or 40A at 230V AC
Output voltage adjustable range: ±10%
Startup time: ≤1s (230V import, Io 100%)
Hold time: ≥20ms (230V import, Io 100%)
Voltage regulation (full): ≤0.5%
Protection functions:
- Overload protection: 105 to 150%, rated power, automatic recovery
- Overvoltage protection: 105 to 150%, rated voltage
Insulation intensity:
- Input-output: 1500V AC/minute
- Input-ground: 1500V AC/minute
- Output-ground: 500V AC/minute
Safety standards: GB 4943, UL 60950-1 and EN 60950-1
EMC standards: GB 9254, EN 55022 class A and EN 61347-2-13:2008
Environment:
- Working temperature: -20 to 60°C/20 to 90%RH (no frost)
- Storage temperature: -40 to 85°C/10 to 95%RH (no frost)
Altitude: ≤2000m
Size: (L)110x(W)78x(H)35mm
Heat output way:
- Form of cooling: natural air convection cooling
- Insulation intensity: 0.5kg/piece

Features:

High efficiency, energy-saving and environment-friendly
High stability and low ripple, increases light efficiency and decreases light attenuation
Assures LED stability long lift and light efficiency by constant voltage
Overload, overvoltage, overcurrent and integrity protection
Certification: CE (LVD + EMC)
RoHS Directive-compliant

Input voltage: 90 to 264V AC

Input frequency: 47 to 63Hz

Input surge: cold time 20A at 120V AC or 40A at 230V AC

Output voltage adjustable range: ±10%

Startup time: ≤1s (230V import, Io 100%)

Hold time: ≥20ms (230V import, Io 100%)

Voltage regulation (full): ≤0.5%

Protection functions:
