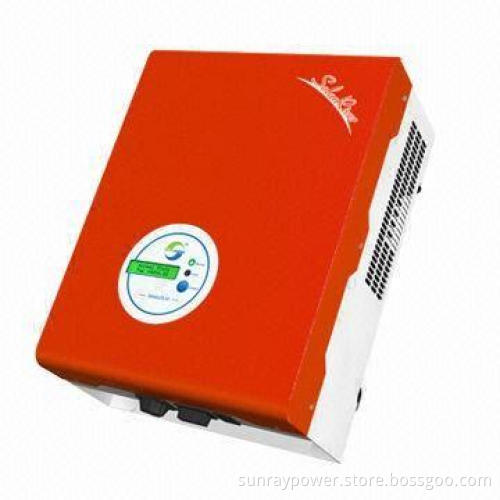

5kW On-grid Tied Inverter, High-efficiency Performance, CE, TUV and VDE Approved

5kW On-grid Tied Inverter, High-efficiency Performance, CE, TUV and VDE Approved

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Input data:

Maximum DC power: 5,200Wp
Maximum DC voltage: 550V
Maximum input current: 26A
Number of MPP tracker: 1
MPPT voltage range: 200 to 500V
Number of DC connection: 2

Output data:

Rated AC power: 4,600W
Maximum output power: 5,000W
Maximum output current: 24A
AC connection: single phase
Grid voltage range: 180 to 260V
Grid frequency: 50/60Hz
Power factor: >0.99
Total harmonic distortion (THD): <3% (rated power)

Efficiency:

Maximum efficiency: 97.6%
Euro efficiency: 96.8%

General data:

Dimensions (W x H x D): 329 x 433 x 180mm
Weight: 18.7kg
Operating temperature range: -20 to 60°C
Electronic protection rating: IP65
Topology: transformerless
Night-time consumption: 0W
Cooling concept: fan cooling
Noise mission (typical): <40dB
Communication interface: RS485/RS232
Standard warranty: 5 years

CE, TÜV, VDE, 10 countries certifications

Good quality and low price

The latest topology, high-efficiency module

Optimal MPPT technology

Multilingual LCD, easy to operate

Parallel running mode with a string of inverters

Maximum DC power: 5,200Wp

Maximum DC voltage: 550V

Maximum input current: 26A

Number of MPP tracker: 1

MPPT voltage range: 200 to 500V

Number of DC connection: 2

Rated AC power: 4,600W

Maximum output power: 5,000W

Maximum output current: 24A

AC connection: single phase

Grid voltage range: 180 to 260V

Grid frequency: 50/60Hz

Power factor: >0.99

Total harmonic distortion (THD): <3% (rated power)

Maximum efficiency: 97.6%

Euro efficiency: 96.8%

Dimensions (W x H x D): 329 x 433 x 180mm

Weight: 18.7kg

Operating temperature range: -20 to 60°C

Electronic protection rating: IP65

Topology: transformerless

Night-time consumption: 0W

Cooling concept: fan cooling

Noise mission (typical): <40dB

Communication interface: RS485/RS232

Standard warranty: 5 years
