High Accuracy Car Coating Thickness Gauge
  • High Accuracy Car Coating Thickness Gauge
  • High Accuracy Car Coating Thickness Gauge
  • High Accuracy Car Coating Thickness Gauge
  • High Accuracy Car Coating Thickness Gauge
  • High Accuracy Car Coating Thickness Gauge
  • High Accuracy Car Coating Thickness Gauge
  • High Accuracy Car Coating Thickness Gauge

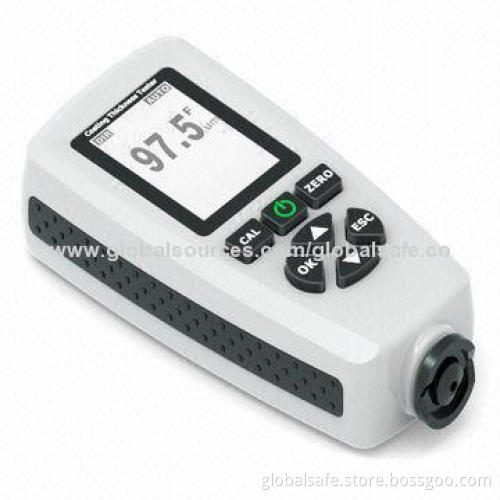

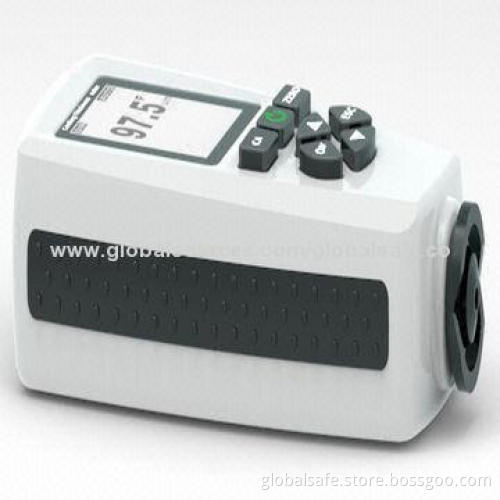

High Accuracy Car Coating Thickness Gauge
High Accuracy Car Coating Thickness Gauge
High Accuracy Car Coating Thickness Gauge
High Accuracy Car Coating Thickness Gauge
High Accuracy Car Coating Thickness Gauge
High Accuracy Car Coating Thickness Gauge
High Accuracy Car Coating Thickness Gauge

High Accuracy Car Coating Thickness Gauge

Get Latest Price
Payment Type:
T/T, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, Western Union or PayPal
Product Description
Product Description
  • Features:
    • Including F and N probe
    • Easy to do zero calibration and multi-point calibration

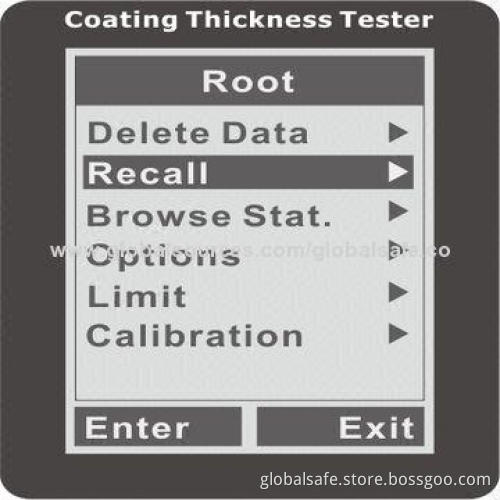

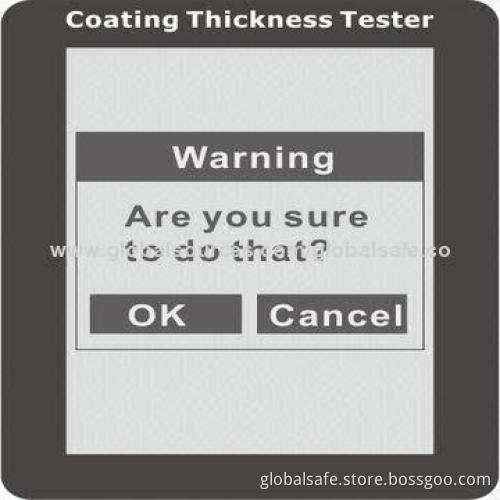

    • 128*128 dot matrix LCD display and menu interface
    • Readings can be stored, recalled and deleted
    • Connect with PC via USB and support analysis software
    • Two measure mode: single and continuous
    • Two group mode: direct (DIR) and general(GEN)
    • User can set high or low limit alarm for each group
  • Specifications:
    • Measuring principle: Magnetic induction
    • Measuring range: 0 to 1300um (0 to 51.18mils)
    • Accuracy: ±(3%+2um)
    • Calibration: One point to four point calibration, zero point calibration

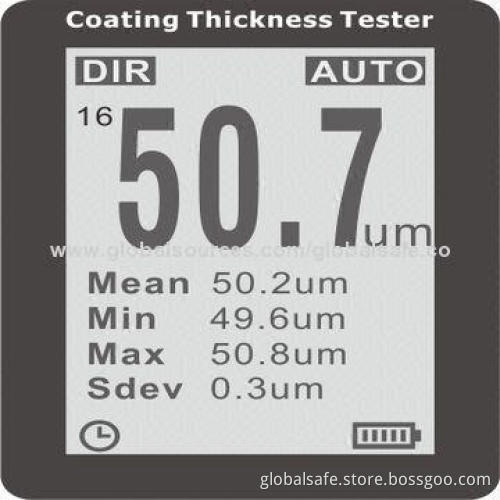

    • Statistics: No. of readings, mean, minimum, maximum and standard deviation
    • Units: um, mm & mils
    • Computer Interface: Download data via USB interface
    • Support analysis software
    • Operation environment temperatures: 0 to 40℃ (32 to 104℉)
    • Humidity range: 20 to 90% RH
    • Storage environments: -20 to 70℃ (-4 to 158℉)
    • Size: 110x53x24mm (4.33x2.09x0.94")
  • Benefits:
    • High accuracy
    • Easy to use
  • Applications:
    • Automobile lacquer detection
    • Ships, aircraft, containers, equipment manufacturing industry
    • Paint, coating, thin film processing and testing
    • Electroplating
    • If you need other measured ranges, please contact us for help
  • Including F and N probe
  • Easy to do zero calibration and multi-point calibration
  • 128*128 dot matrix LCD display and menu interface
  • Readings can be stored, recalled and deleted
  • Connect with PC via USB and support analysis software
  • Two measure mode: single and continuous
  • Two group mode: direct (DIR) and general(GEN)
  • User can set high or low limit alarm for each group
  • Measuring principle: Magnetic induction
  • Measuring range: 0 to 1300um (0 to 51.18mils)
  • Accuracy: ±(3%+2um)
  • Calibration: One point to four point calibration, zero point calibration
  • Statistics: No. of readings, mean, minimum, maximum and standard deviation
  • Units: um, mm & mils
  • Computer Interface: Download data via USB interface
  • Support analysis software
  • Operation environment temperatures: 0 to 40℃ (32 to 104℉)
  • Humidity range: 20 to 90% RH
  • Storage environments: -20 to 70℃ (-4 to 158℉)
  • Size: 110x53x24mm (4.33x2.09x0.94")
  • High accuracy
  • Easy to use
  • Automobile lacquer detection
  • Ships, aircraft, containers, equipment manufacturing industry
  • Paint, coating, thin film processing and testing
  • Electroplating
  • If you need other measured ranges, please contact us for help
