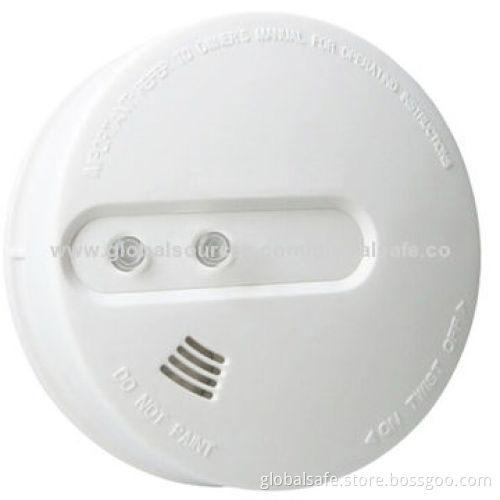

Heat & Photoelectric Smoke Alarm with red LED flash/433/315mhz

Heat & Photoelectric Smoke Alarm with red LED flash/433/315mhz

Get Latest Price

Payment Type:: T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Smoke heat detector Key characteristic:

Adopt MCU auto-processing technology, stability improved
Wireless network function
Hush function
Fault auto-checking function
Auto reset
Infrared photoelectric sensor
Sound & flash alarm/LED indicator
SMT manufacture technology adopted, high stability
Dustproof, mothproof, anti-light interference design
Anti-RF interference(20V/m-1GHZ)

Techincal Parameters:

Operating voltage: AC 220V or AC 110V(9V back-up battery); 9V battery(A 6F22 battery)
Static current: < 25uA(Average value)
Alarm current: < 35mA
Battery life: Lithium battery with lifetime 1 year
Alarm indicator: red LED flash
Sound level: >> 85db/3m
Wireless receive/send RF: 315/433MHZ
Coding type: 2262 code
Sending distance: 200m(in the open area)
Working temperature: -10 degree ~ +50 degree
Environmental humidity: << 95% RH
Dimension: 128*38mm
Execute criterion: GB4715-2005; EN14606; UL217

Detecting area: 80 square meters when the horizontal height is 6m to 12m, 60 square meters when horizontal height is below 6m. The accurate parameters please refer to fire auto-alarm system design standard GB50116-98

Adopt MCU auto-processing technology, stability improved

Wireless network function

Hush function

Fault auto-checking function

Auto reset

Infrared photoelectric sensor

Sound & flash alarm/LED indicator

SMT manufacture technology adopted, high stability

Dustproof, mothproof, anti-light interference design

Anti-RF interference(20V/m-1GHZ)

Operating voltage: AC 220V or AC 110V(9V back-up battery); 9V battery(A 6F22 battery)

Static current: < 25uA(Average value)
