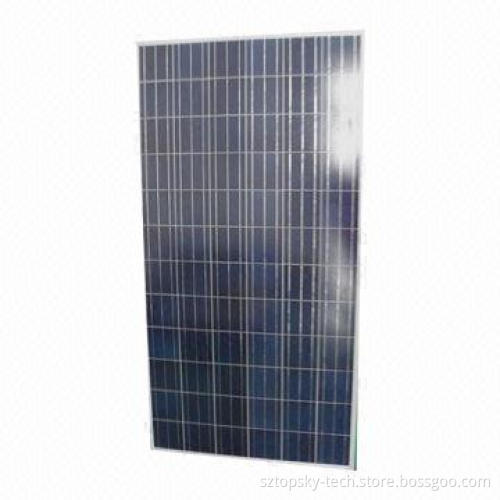

TP-(275W-290W)PSP polycrystalline solar panels
  • TP-(275W-290W)PSP polycrystalline solar panels
  • TP-(275W-290W)PSP polycrystalline solar panels
TP-(275W-290W)PSP polycrystalline solar panels
TP-(275W-290W)PSP polycrystalline solar panels

TP-(275W-290W)PSP polycrystalline solar panels

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Typical electrical characteristics:
    • Solar cells: polycrystalline 156mmx156mm 72pcs (6x12)-3bus bars
    • Max-power: 275Wp, 280Wp, 285Wp, 290Wp
    • Power tolerance : -1% to +3%
    • Voltage at Pmax(Vmp) : 36.1V, 36.3V, 36.4V, 36.5V
    • Open-circuit voltage(Voc): 44.2V, 44.4V, 44.6V, 44.8V
    • Current at Pmax(Imp): 7.62A, 7.71A, 7.83A, 7.95A
    • Short-circuit current(Isc): 8.22A, 8.30A, 8.38A, 8.46A
    • Max-system voltage: 1000V(IEC), 600V DC (UL)
    • Cell efficiency: 15.90%, 16.20%, 16.50%, 16.80%
    • Module efficiency: 14.20%, 14.40%, 14.70%, 14.90%
    • No. of bypass diodes: 3pcs
    • Max series fuse: 12A
    • Temperature coefficient of Pmax : -0.48%/℃
    • Temperature coefficient Voc : -0.34%/℃
    • Temperature coefficient of Isc : 0.02%/℃
    • Nominal operating cell temperature: 47±2℃
    • STC conditions(1000W/m²; 1.5AM and 25℃ cell temperature)
  • Mechanical characteristics:
    • Cable type, diameter and length: Φ=4mm², L=1000±5mm
    • Type of connector: compatible type Mc4
    • Dimensions (AxBxC): 1956x992x50mm(77x33x2-inch)
    • Weight: 23.2kg(51.0lbs)
    • No. of draining holes in frame: 16
    • Construction:
      • Glass: high transmission low iron, tempered
      • Glass: 3.2mm
      • Encapsulation: EVA
      • Back side: Tedlar, white
      • Junction box: IP65 rated
      • Frame: clear anodized aluminum alloy type 6063T5 frame
  • Qualification test parameters:
    • Dielectric insulation voltage: 3000V DC max
    • Operating temperature: -40 to + 85℃
    • Max load: 5400pa
    • Hailstone impact: 25mm(1 inch) at 23m/s(52mph)
  • Packaging configuration: 22pcs/box, 2pcs/box
  • Quantity pallet: 1 box/pallet, 16 boxes/pallet, 19 boxes/pallet
  • Loading capacity: 440pcs/40'HQ, 160pcs/20'GP, 418pcs/40'GP
  • Solar cells: polycrystalline 156mmx156mm 72pcs (6x12)-3bus bars
  • Max-power: 275Wp, 280Wp, 285Wp, 290Wp
  • Power tolerance : -1% to +3%
  • Voltage at Pmax(Vmp) : 36.1V, 36.3V, 36.4V, 36.5V
  • Open-circuit voltage(Voc): 44.2V, 44.4V, 44.6V, 44.8V
  • Current at Pmax(Imp): 7.62A, 7.71A, 7.83A, 7.95A
  • Short-circuit current(Isc): 8.22A, 8.30A, 8.38A, 8.46A
  • Max-system voltage: 1000V(IEC), 600V DC (UL)
  • Cell efficiency: 15.90%, 16.20%, 16.50%, 16.80%
  • Module efficiency: 14.20%, 14.40%, 14.70%, 14.90%
  • No. of bypass diodes: 3pcs
  • Max series fuse: 12A
  • Temperature coefficient of Pmax : -0.48%/℃
  • Temperature coefficient Voc : -0.34%/℃
  • Temperature coefficient of Isc : 0.02%/℃
  • Nominal operating cell temperature: 47±2℃
  • STC conditions(1000W/m²; 1.5AM and 25℃ cell temperature)
  • Cable type, diameter and length: Φ=4mm², L=1000±5mm
  • Type of connector: compatible type Mc4
  • Dimensions (AxBxC): 1956x992x50mm(77x33x2-inch)
  • Weight: 23.2kg(51.0lbs)
  • No. of draining holes in frame: 16
  • Construction:
    • Glass: high transmission low iron, tempered
    • Glass: 3.2mm
    • Encapsulation: EVA
    • Back side: Tedlar, white
    • Junction box: IP65 rated
    • Frame: clear anodized aluminum alloy type 6063T5 frame
  • Glass: high transmission low iron, tempered
  • Glass: 3.2mm
  • Encapsulation: EVA
  • Back side: Tedlar, white
  • Junction box: IP65 rated
  • Frame: clear anodized aluminum alloy type 6063T5 frame
  • Dielectric insulation voltage: 3000V DC max
  • Operating temperature: -40 to + 85℃
  • Max load: 5400pa
  • Hailstone impact: 25mm(1 inch) at 23m/s(52mph)
