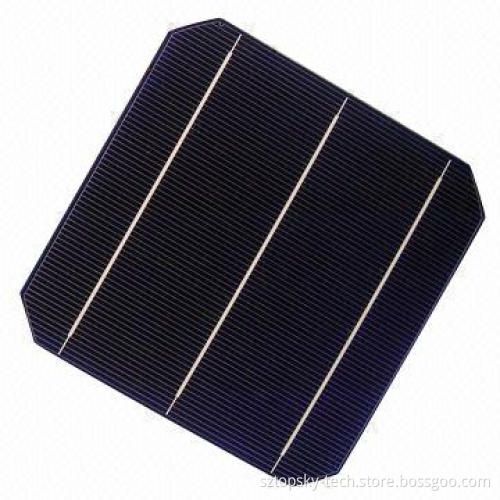

Hottest Selling 3BB 6'' High-efficiency Monocrystalline Taiwan Brand Solar Cell

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Brief description:

Physical characteristics:

Dimensions: 156x156mm
Diagonal: 220mm
Cell thickness: 180/200 ±20¼m
Front: anisotropically texturized surface and dark siliconnitride anti-reflection coatings
3x1.5mm silver busbar
Back: full-surface aluminum back-surface field
3x2.1mm (silver/aluminum) discontinuous soldering pads

Electrical characteristics:

Products features:

Taiwan brand, NSP/Motech, efficiency: 15-19.55%

Stable performance, long term stability and reliability

TUV-certified (IEC 61215 ed.2, IEC 61730-1, IEC 61730-2 teststandards

High and stable conversion efficiency

High reliability with guaranteed ±3% output powertolerance

Built-in bypass diodes to minimize 50% less shading powerdrop

Built with anodized aluminum frames to provide structuralstrength

Innovative cable connectors for easy installation

Combination of high efficiency and attractive appearance

Dimensions: 156x156mm

Diagonal: 220mm

Cell thickness: 180/200 ±20¼m

Front: anisotropically texturized surface and dark siliconnitride anti-reflection coatings

3x1.5mm silver busbar

Back: full-surface aluminum back-surface field

3x2.1mm (silver/aluminum) discontinuous soldering pads

Eff-code: 1940, 1930, 1920, 1910, 1900, 1890, 1880, 1860,1840

Eff: 19.40, 19.30, 19.20, 19.10, 19.00, 18.90, 18.80, 18.60,18.40%

Pmax: 4.636, 4.612, 4.588, 4.564, 4.540, 4.516, 4.492, 4.444,4.397W

Ipm: 8.490, 8.462, 8.434, 8.405, 8.376, 8.332, 8.304, 8.231,8.157A

Isc: 9.029, 9.001, 8.976, 8.953, 8.925, 8.897, 8.865, 8.842,8.814A

Vpm: 0.546, 0.545, 0.544, 0.543, 0.542, 0.542, 0.541, 0.540,0.539V

Voc: 0.645, 0.645, 0.644, 0.643, 0.642, 0.642, 0.641, 0.640,0.638V

Data under standard testing conditions (STC): 1,000W/M2, AM1.5,25°C

High conversion efficiencies resulting in superior power outputperformance

Outstanding power output even in low light or high temperatureconditions

Optimized design for ease of soldering and lamination

Long-term stability, reliability and performance

Low breakage rate
