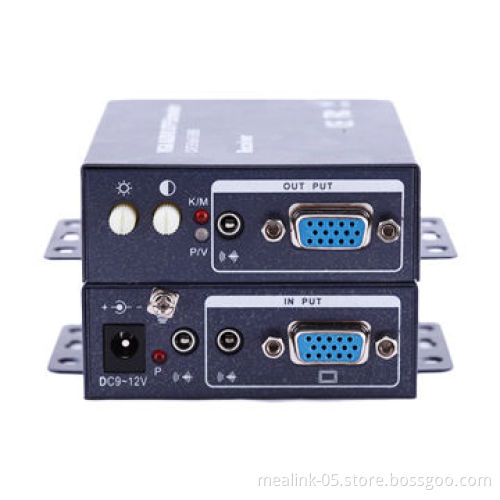

200M VGA Audio CAT5 Extender (Local/Adjustable)

The 100M VGA audio extender transmits VGA video up to 1,200 feet (200m) away from a computer using CAT5/5e/6 cableEach video audio extender consists of a local unit that connects to a computer and also supplies video and audio to a local monitor, and a remote unit that connects to a monitorIdeal solution for digital signage applicationsSupports local and remote VGA monitorsSupports resolutions to 1,920 x 1,440pSharpest and clearest VGA quality over CAT5/UTP-STP cable of any manufacturerBuilt-in lightning and ESD surge protectionAvailable with optional stereo audio or RS232 controlUse in-house CAT5/5e/6 phone wiring to locate a monitor remotelyOptional VESA mounting bracket is available for mounting the remote unit to the back of a flat panel monitorLocal unit:

Host connectionMultiple platform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10Male/female 15-pin HD connector for computer connectionOptional RS232 support - female 9-pin D connectorOptional stereo audio support - 3.5mm stereo plug

Local access:

Crisp and clear 1,920x1,440 video resolutionFemale 15-pin HD connector for local VGA monitorOptional RS232 support - male 9-pin D connectorOptional stereo audio support - 3.5mm stereo jack

Remote unit:

Supports resolutions up to 1,920 x 1,440P, refer to the resolution chart below for resolutions at different lengthsFemale 15-pin HD connectorOptional 3.5mm stereo audio connectionOptional male 9-pin D connector for RS232

Video quality adjustment:

Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video/RS232 extenderTest pattern for cable length

Environmental:

Operating temperatures: 32 to 100°F (0 to 38°C)Storage temperatures: -20 to 140°F (-30 to 60°C)

Host connectionMultiple platform support: Windows 2000/XP/Vista/Windows7/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10Male/female 15-pin HD connector for computer connectionOptional RS232 support - female 9-pin D connectorOptional stereo audio support - 3.5mm stereo plugCrisp and clear 1,920x1,440 video resolutionFemale 15-pin HD connector for local VGA monitorOptional RS232 support - male 9-pin D connectorOptional stereo audio support - 3.5mm stereo jackSupports resolutions up to 1,920 x 1,440P, refer to the resolution chart below for resolutions at different lengthsFemale 15-pin HD connectorOptional 3.5mm stereo audio connectionOptional male 9-pin D connector for RS232Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for the video-only extender, and automatically for audio/video or video/RS232 extenderTest pattern for cable lengthOperating temperatures: 32 to 100°F (0 to 38°C)Storage temperatures: -20 to 140°F (-30 to 60°C)
