Product Description

Description:

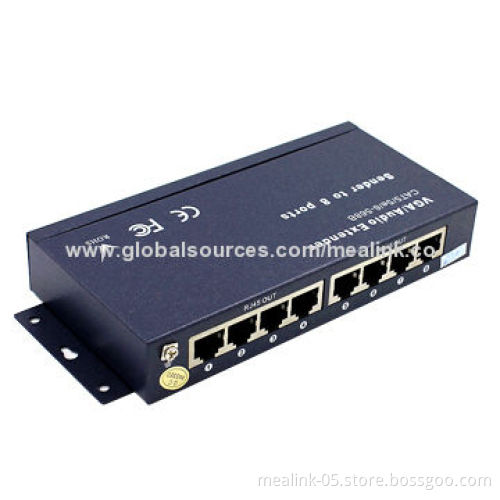

It is 8 channels active VGA video and audio transmitter allowing remote transmission of high-resolution VGA video and high-fidelity audio over UTP cable

Features:

350MHz signal transmission bandwidth
Transmission distance up to 150m working with UTP801AR-150
Transmission distance up to 300m working with UTP801AR-300
Supports VGA, SVGA, XGA, SXGA, WXGA ,UXGA and multi-sync monitors
High-video resolution up to 1,600x1,200 pixels
Built-in surge and transient protection
Super interference rejection

Power properties:

Power supply: 12V DC (power adaptor)
Power consumption: <20W
Power switch: supported

Video properties:

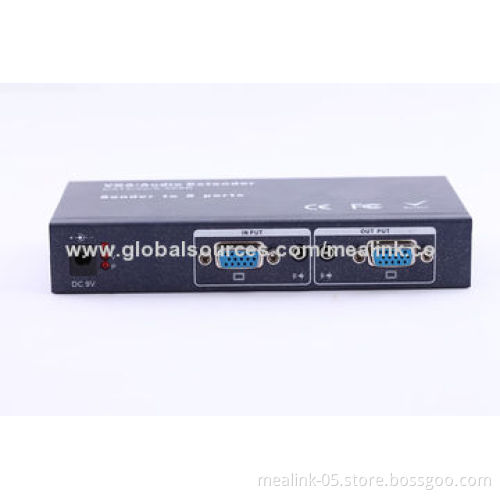

Video input connector: 1 x blue 15-pin HD15 male
- Impedance: 75Ω
Local video output connectors: 3 x blue 15-pin HD15 female
- Impedance: 75Ω

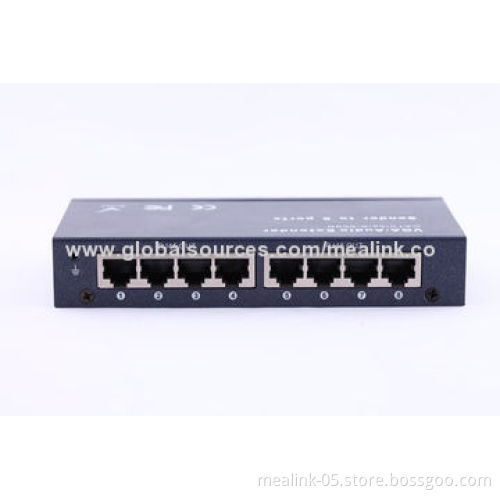

UTP cable connectors: 8 x RJ-45
- Impedance: 50Ω
Signal transmission band: >350MHz (-3dB)
Linear distortion: <3%
RGB signal distortion: <2ns
Common-mode interference rejection: 65dB (typical)
Synchronous signal: 0-5V, TTL PWL
Synchronous signal band: 1K-200kHz
Synchronous signal delay: <15ns
DDC2: virtual DDC

Audio properties:

Connectors: 2 x 3.5mm audio jack
Input impedance: 10kΩ
Output impedance: 600Ω
Transmission band: 10-20KHz

Protections:

Lightning protection: 1,000V, 10/700us
IEC61000-4-5
ESD
Contact discharge: 2,000V
Air discharge: 4,000V
IEC61000-4-2

Physical properties:

Dimensions (LWH): 575*275*90mm
Housing material: metal
Color: blue

Environment:

Net weight: 0.6kg
Operating temperature: 0-55°C
Relative humidity (non-condensing): 0-95% RH
Storage temperature: -20-80°C

Accessories:

VGA cable (F-M)
- Length: 1.2m
Audio cable (M-M)
- Length: 1.5m
Standard power cable
- Length: 1.2m
Casing gross weight: 2.57kg
Casing volume (L x W x H): 575*275*90mm
