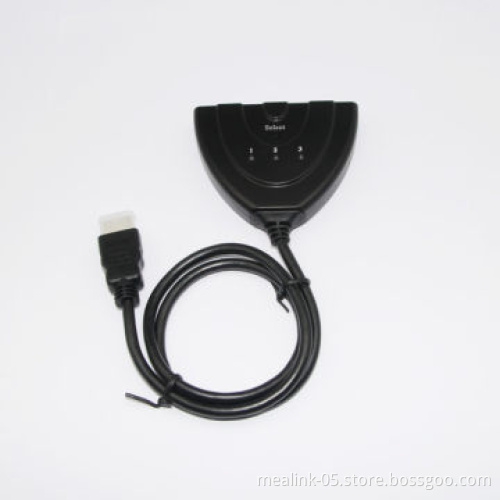

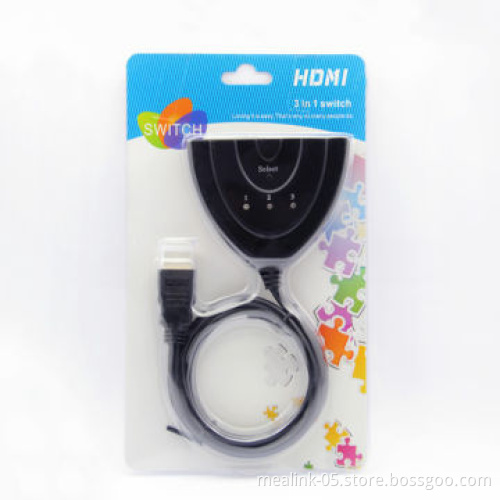

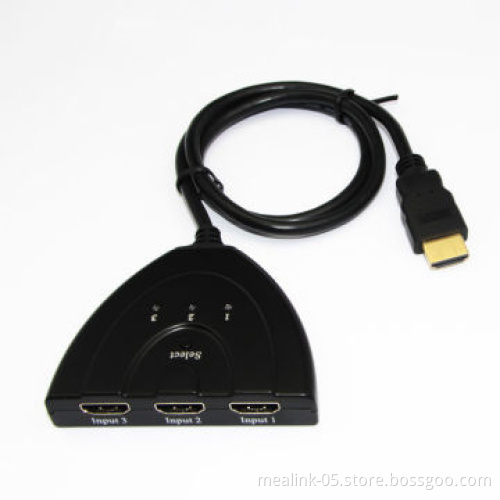

3 x 1 HDMI Switcher, Short HDMI Cable, Supports Digital Audio Format

3 x 1 HDMI Switcher, Short HDMI Cable, Supports Digital Audio Format

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Introduction:

The 3x1 HDMI switch routes high-definition video (in multiple resolution up to 1,080p) and digital audio from any one of the three sources to display unit
Three input accommodate the simultaneous connection of up to five high-definition video sources, such as satellite systems and HD DVD players
The output sends the high-definition audio/video signals to a high definition display
This kind of the HDMI amplifier switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function

Specifications:

HDMI switch 3x1
Supports audio format
DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Supports video color format
24-bit/deep color 30, 36-bit
HDMI resolution: 1,080 at 24fps/1,080p/1,080i/720p/576p/480p/480i
Supports digital audio format
Manual or remote
Select one of 3 different HDMI signal input source, output to the sink
Input can be switched with the IR remote control, also can be controlled by our buttons
Input/output TMDS signal: 0.5-1.5V P-P(TTL)
Operating temperature range: -15 to +55°C
Operating humidity range: 5 to 90% RH (no condensation)

Features:

Supports HDMI 1:3b
Full HD 1,080P
Supports 12-bit deep color
High-performance up to 2.5Gbps
Switch easily between any three HDMI sources
Extends the range of HDMI compliant device by equalizing and re-clocking the HDMI signal
Maintains high-resolution video-beautiful, sharp HDTV resolution up to 1,080p, 2k and computer resolution up to 1,920 x 1,200p are easily achieved
Supports 25 meters HDMI cable on both ends of the switcher with IR receiver and remote control
HDMI passthrough
HDCP passthrough
No power needed

The 3x1 HDMI switch routes high-definition video (in multiple resolution up to 1,080p) and digital audio from any one of the three sources to display unit

Three input accommodate the simultaneous connection of up to five high-definition video sources, such as satellite systems and HD DVD players

The output sends the high-definition audio/video signals to a high definition display

This kind of the HDMI amplifier switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function

HDMI switch 3x1

Supports audio format

DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD

Supports video color format

24-bit/deep color 30, 36-bit

HDMI resolution: 1,080 at 24fps/1,080p/1,080i/720p/576p/480p/480i

Supports digital audio format

Manual or remote

Select one of 3 different HDMI signal input source, output to the sink

Input can be switched with the IR remote control, also can be controlled by our buttons

Input/output TMDS signal: 0.5-1.5V P-P(TTL)

Operating temperature range: -15 to +55°C

Operating humidity range: 5 to 90% RH (no condensation)

Supports HDMI 1:3b

Full HD 1,080P

Supports 12-bit deep color

High-performance up to 2.5Gbps

Switch easily between any three HDMI sources

Extends the range of HDMI compliant device by equalizing and re-clocking the HDMI signal

Maintains high-resolution video-beautiful, sharp HDTV resolution up to 1,080p, 2k and computer resolution up to 1,920 x 1,200p are easily achieved

Supports 25 meters HDMI cable on both ends of the switcher with IR receiver and remote control

HDMI passthrough

HDCP passthrough

No power needed
