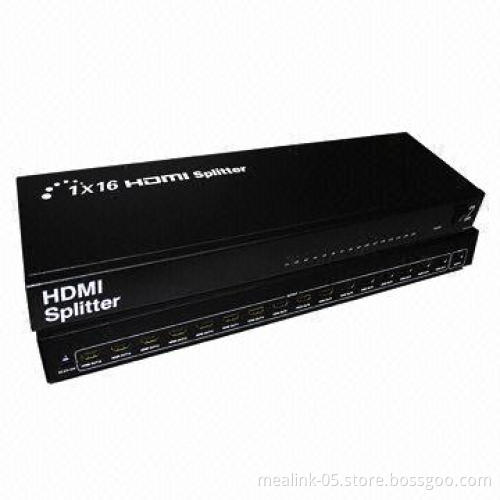

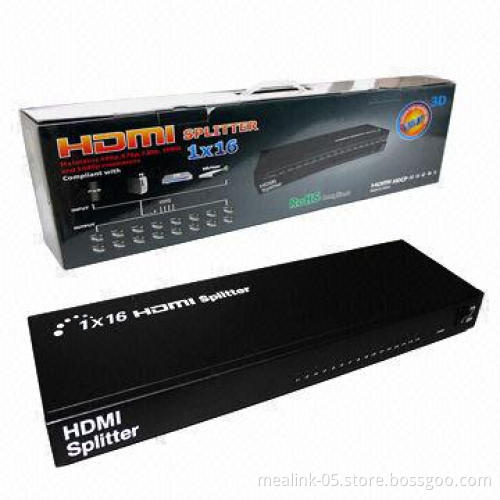

1 x 16 HDMI® Splitter, Supports 3D, CEC, 100-240V AC, 50/60Hz Input

1 x 16 HDMI® Splitter, Supports 3D, CEC, 100-240V AC, 50/60Hz Input

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

One HDMI® 1.3B input signal split to sixteen HDMI® 1.3Bsink devices
HDCP 1.2 protocol compliant
Supports 3D, CEC, deep color 30-bit, 36-bit, Blu-ray24/50/60fps/HD-DVD/XVYCC
Digital audio format, as DTS-HD/trueHD/LPCM7.1/DTS/AC3/DSD
Supports signal re-timing
Input: up to 15m, 26AWG HDMI® 1.3m standard cablelength
Output: up to 25m 26AWG cable length
No loss of quality
Installs in minutes
Need 5V DC/6A power supply

Connecting and operating:

Connect one cable from HDMI® source devices into HDMI®splitter input
Connect one cable from each display (monitor or projector) intothe HDMI® splitter output
Connect 5V power supply to the HDMI® 1 x 16 splitter

Specifications:

Signal input/output: 1 input, 8 output
HDMI® connector type: A 19-pin male
HDMI® version: HDMI® 1.3B
HDCP version: HDCP1.2
HDMI® resolution:24/50/60fps/1,080p/1,080i/720p/576p/576i/480p/480i
Supports video color format: 24-bit/deep color 30/36-bit
Supports audio format: DTS-HD/true HD/LPCM7.1/DTS/AC3/DSD
Maximum bandwidth: 225MHz
Maximum baud rate: 6.75Gps
Input cable distance: d15m, HDMI® 26AWG
Output cable distance: d25m, 26AWG HDMI® 1.3 standardcable
Input/output DDC signal: 5Vp-p (TTL)
Input/output TMDS signal: 0.5-1.5Vp-p
Maximum working current: 2.5A
Power adapter:
- Input: 100-240V AC, 50/60Hz
- Output: 5V DC/3A
Operating temperature range: -15 to +55ºC

Our devices offers solutions for noise, space and securityconcerns, data center controls, information distributions,conference room presentations, schools and corporate trainingenvironments

One HDMI® 1.3B input signal split to sixteen HDMI® 1.3Bsink devices

HDCP 1.2 protocol compliant

Supports 3D, CEC, deep color 30-bit, 36-bit, Blu-ray24/50/60fps/HD-DVD/XVYCC

Digital audio format, as DTS-HD/trueHD/LPCM7.1/DTS/AC3/DSD

Supports signal re-timing

Input: up to 15m, 26AWG HDMI® 1.3m standard cablelength

Output: up to 25m 26AWG cable length

No loss of quality

Installs in minutes

Need 5V DC/6A power supply

Connect one cable from HDMI® source devices into HDMI®splitter input

Connect one cable from each display (monitor or projector) intothe HDMI® splitter output
