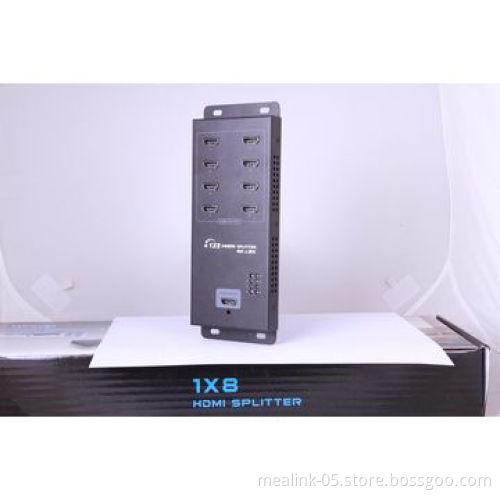

Wall Plate 1x8 HDMI Splitter 1.4V, 4K*2K, New

Wall Plate 1x8 HDMI Splitter 1.4V, 4K*2K, New

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Introduction:

This product distributes 1 way HDMI signal from STB, DVD, notebook, D-VHS and HD-player etc to 8 ways identical HDMI signal simultaneously
It supports 3D HDMI and HDMI1.4 (4Kx2K)

Safety notes:

Use DC 5V power supply only. Make sure specification matched if using adapters not supplied by factory.
Put this production in dry and ventilated place for normal heat dissipation
Keep this products away from strong static and magnetic environment

Installation requirement:

HDTV or other display with HDMI port
HDMI video source,such as DVD, PS3, STB, PC and more
High standard HDMI cable (can support HDMI1.4)
Keep this products away from strong static and magnetic environment

Please connect the devices according to the above image and operate as following steps:

Connect the HDMI video source output port to the splitter input port by HDMI cable
Connect the splitter output port to HDMI display by HDMI cable
Set the TV input to right HDMI channel .
Power on the splitter (power indicator LED with light on in red)
Operation notes:
- Before output HDMI signal , the splitter will read EDID information of connected TVs and send it back to HDMI source part to let it determine the output mode
- Indicator LED shows the working status

Trouble shooting

No image output:
- Check and make sure all connections are good and correct
- Check and make sure the TV has been set up to the right channel
- Check if the matched output indicator LED lights on
- Display is unstable, splash screen, snowflakes or audio stuck
Check and make sure all connections are good and correct
Use HDMI 1.4 cable if transmitting 4Kx2K HDMI signal

Specifications:

Power supply: DV5V/3A
Input ports: HDMI connecter x 1
Output ports: HDMI connecter x 8
Power port: DC 1.7mm x 1
Power port: DC 1.7mm x 1
Power indicator LED: Orange LED x 1
Signal Indicator LED: Blue LED x 8
DVI specification: Compliant DVI specification 1.0
HDMI Specification: HDMI specification 1.4a compliant
HDMI HDCP: Compliant with HDCP Rev 1.3 specification Supports HDCP trepeater
Frequency range: 25MHz-340MHz
Max transmission rate: 3.4G X 3= 10.2Gbps
Color depth: Support standard audio and DSD (direct stream digital) Audio and HD (HBR) audio
Supports HDMI resolution: 480i@60Hz, 480p@60Hz,576i@50Hz, 576p@50Hz, 720p@50@60Hz, 1080i@50@60Hz, 1080p@50@60Hz, 3D HDMI (720p@50@60Hz, 1080p@24Hz) 3840x2160p@24Hz
Dimension: 213x80x19mm
Net Weight: 390g
Color: Black
Working temperatures: 0~60°C

This product distributes 1 way HDMI signal from STB, DVD, notebook, D-VHS and HD-player etc to 8 ways identical HDMI signal simultaneously

It supports 3D HDMI and HDMI1.4 (4Kx2K)

Use DC 5V power supply only. Make sure specification matched if using adapters not supplied by factory.

Put this production in dry and ventilated place for normal heat dissipation

Keep this products away from strong static and magnetic environment

HDTV or other display with HDMI port

HDMI video source,such as DVD, PS3, STB, PC and more

High standard HDMI cable (can support HDMI1.4)

Keep this products away from strong static and magnetic environment

Connect the HDMI video source output port to the splitter input port by HDMI cable

Connect the splitter output port to HDMI display by HDMI cable

Set the TV input to right HDMI channel .

Power on the splitter (power indicator LED with light on in red)

Operation notes:

Before output HDMI signal , the splitter will read EDID information of connected TVs and send it back to HDMI source part to let it determine the output mode
Indicator LED shows the working status

Before output HDMI signal , the splitter will read EDID information of connected TVs and send it back to HDMI source part to let it determine the output mode

Indicator LED shows the working status

No image output:

Check and make sure all connections are good and correct
Check and make sure the TV has been set up to the right channel
Check if the matched output indicator LED lights on
Display is unstable, splash screen, snowflakes or audio stuck

Check and make sure all connections are good and correct

Use HDMI 1.4 cable if transmitting 4Kx2K HDMI signal

Check and make sure all connections are good and correct

Check and make sure the TV has been set up to the right channel

Check if the matched output indicator LED lights on

Display is unstable, splash screen, snowflakes or audio stuck

Power supply: DV5V/3A

Input ports: HDMI connecter x 1

Output ports: HDMI connecter x 8

Power port: DC 1.7mm x 1

Power indicator LED: Orange LED x 1

Signal Indicator LED: Blue LED x 8

DVI specification: Compliant DVI specification 1.0

HDMI Specification: HDMI specification 1.4a compliant

HDMI HDCP: Compliant with HDCP Rev 1.3 specification Supports HDCP trepeater

Frequency range: 25MHz-340MHz

Max transmission rate: 3.4G X 3= 10.2Gbps

Color depth: Support standard audio and DSD (direct stream digital) Audio and HD (HBR) audio

Supports HDMI resolution: 480i@60Hz, 480p@60Hz,576i@50Hz, 576p@50Hz, 720p@50@60Hz, 1080i@50@60Hz, 1080p@50@60Hz, 3D HDMI (720p@50@60Hz, 1080p@24Hz) 3840x2160p@24Hz

Dimension: 213x80x19mm

Net Weight: 390g

Color: Black

Working temperatures: 0~60°C
