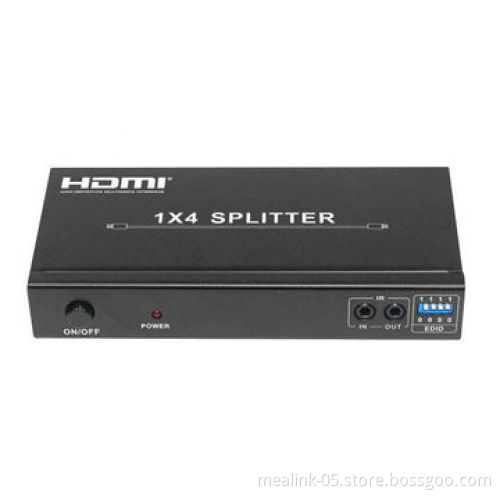

1x4 HDMI Splitter + 50M Extender, Over CAT5e/CAT6 with IR + EDID Control

1x4 HDMI Splitter + 50M Extender, Over CAT5e/CAT6 with IR + EDID Control

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Introduction:

The Splitter is a product for splitting and extending your HDMI signal over long distances to a compatible display
It is designed to convert the HDMI signal and transmit by Internet cable
It also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the source in the sink side which is 50 meters outside, also you can control the Sink in the Source side which is 50 meters outside using the splitter

Features:

Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0
Full HD support: 1080p@60Hz@24 bit/pixels
Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
Operates for TMDS clock frequencies up to 148.5MHz
Uses single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distances transmission
UTP cable termination follows the standard of IEEE-568B
Supports EDID control via EDID selector
Transfer Bidirectional Infrared control signal together with the HDMI signal

Package:

HDMI splitter --------- 1PCS
Receiver -------- 4PCS
Wideband IR Tx ------- 4PCS
Wideband IR Rx ------- 4PCS
5V2A DC Power Supply adapter ------ 1PCS
5V1A DC Power Supply adapter ------ 4PCS
Operation manual ------- 1PCS

Specifications:

Frequency bandwidth: 1.485Gbps

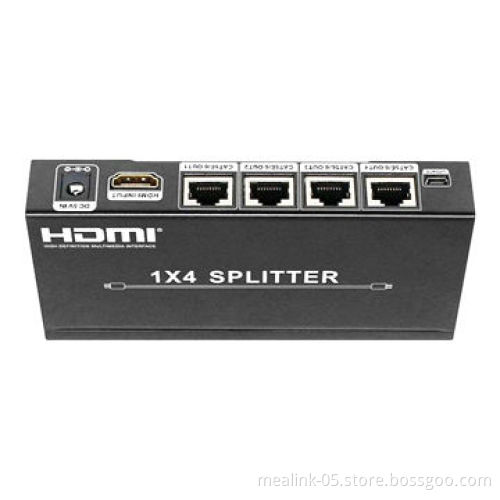

HDMI splitter input/output ports: 1x HDMI Female port/4 x CAT6, 1x IR Transmitter/1x IR Receiver
Receiver input/output ports: 1 x HDMI Female port/1 x CAT6, 1x IR Transmitter/1x IR Receiver
Power supply: HDMI Splitter DC 5V 2A Receiver DC 5V 1A
ESD protection human body model: ± 8kV (air-gap discharge), ± 4kV (contact discharge)
Dimensions (mm) splitter: 70(W) X 145 (D) X 25(H) Receiver: 49(W) X 81 (D) X 25 (H)
Weight splitter: 300g Receiver: 150g x 4
Operating temperatures: 0°C ~ 40°C/32°F ~ 104°F
Operating temperatures: 0°C ~ 40°C/32°F ~ 104°F
Storage temperatures: -20°C ~ 60°C/-4°F ~ 140°F
Relative humidity: 20 ~ 90% RH (Non-condensing)
Power consumption (Max) HDMI Splitter 10W X1 Receiver:5Wx4
