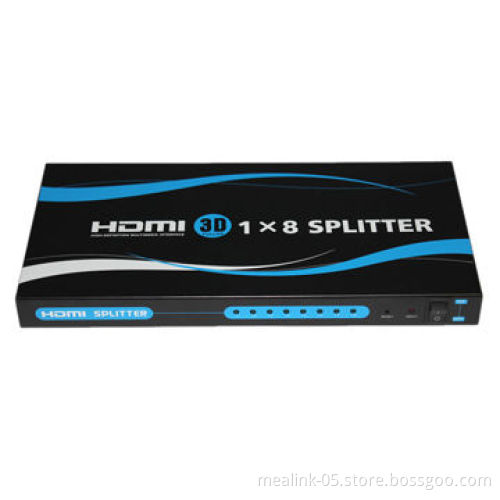

New Design 1x 8 HDMI Splitter, 3D TV SupportedNew
  • New Design 1x 8 HDMI Splitter, 3D TV SupportedNew
  • New Design 1x 8 HDMI Splitter, 3D TV SupportedNew
New Design 1x 8 HDMI Splitter, 3D TV SupportedNew
New Design 1x 8 HDMI Splitter, 3D TV SupportedNew

New Design 1x 8 HDMI Splitter, 3D TV SupportedNew

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • The mini 1x8 HDMI splitter use a single HDMI source, accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to eight HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
  • Our devices offers solutions for noise, space and security concerns, and data center control, information distribution, conference room presentation, school and corporate training environments.
  • Features:
    • One HDMI 1.3b input signal split to eight HDMI 1.3b sink devices
    • HDCP 1.2 protocol compliant
    • Supports 3D
    • Supports CEC
    • Supports deep color 30bit, 36bit
    • Support Blue-Ray 24/50/60fs/HD-DVD/xv YCC
    • Digital audio format, as DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
    • Support signal retiming
    • Support input up to 15metres AWG26 HDMI 1.3 standard cable length, output up to 25metres AWG26 cable length
    • No loss of quality
    • Installs in minutes
    • Need DC5V/3A power supply
  • Operating and connecting:
    • Connect one cable from HDMI source devices into HDMI splitter input
    • Connect one cable from each display (monitor or projector) into the HDMI splitter outputs
    • Connect 5V power supply to the mini HDMI 1x8 splitter
  • Specifications:
    • HDMI version: HDMI 1.3b
    • HDCP version: HDCP1.2 HDMI
    • Resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
    • Support video color format: 24bit/deep color 30bit, 36bit
    • Support audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
    • Max bandwidth: 225MHz
    • Max baud rate: 6.75Gbps
    • Input/output TMDS signal: 0.5~1.5Volts p-p(TTL)
    • Input/output DDC signal: 5Volts p-p (TTL)
    • Input cable distance: ≤ 15m AWG26 HDMI 1.3 standard cable
    • Output cable distance: ≤ 25m AWG26 HDMI 1.3 standard cable
    • Max working current: 1.4A
    • Power adapter format:
    • Input: AC (50HZ, 60HZ): 100V-240V
    • Output: DC5V/3A
    • Operating temperature range: (-15 to +55)
    • Operating humidity range: 5 to 90%RH (no condensation)
    • Dimension (L x W x H: 280x158x25 (mm)
    • Weight: 1050g
  • The accessories with the machines lists as below:
    • 5V Power Adaptor
    • one pc of Manual
  • One HDMI 1.3b input signal split to eight HDMI 1.3b sink devices
  • HDCP 1.2 protocol compliant
  • Supports 3D
  • Supports CEC
  • Supports deep color 30bit, 36bit
  • Support Blue-Ray 24/50/60fs/HD-DVD/xv YCC
  • Digital audio format, as DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Support signal retiming
  • Support input up to 15metres AWG26 HDMI 1.3 standard cable length, output up to 25metres AWG26 cable length
  • No loss of quality
  • Installs in minutes
  • Need DC5V/3A power supply
  • Connect one cable from HDMI source devices into HDMI splitter input
  • Connect one cable from each display (monitor or projector) into the HDMI splitter outputs
  • Connect 5V power supply to the mini HDMI 1x8 splitter
  • HDMI version: HDMI 1.3b
  • HDCP version: HDCP1.2 HDMI
  • Resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
  • Support video color format: 24bit/deep color 30bit, 36bit
  • Support audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Max bandwidth: 225MHz
  • Max baud rate: 6.75Gbps
  • Input/output TMDS signal: 0.5~1.5Volts p-p(TTL)
  • Input/output DDC signal: 5Volts p-p (TTL)
  • Input cable distance: ≤ 15m AWG26 HDMI 1.3 standard cable
  • Output cable distance: ≤ 25m AWG26 HDMI 1.3 standard cable
  • Max working current: 1.4A
  • Power adapter format:
  • Input: AC (50HZ, 60HZ): 100V-240V
  • Output: DC5V/3A
  • Operating temperature range: (-15 to +55)
  • Operating humidity range: 5 to 90%RH (no condensation)
  • Dimension (L x W x H: 280x158x25 (mm)
  • Weight: 1050g
  • 5V Power Adaptor
  • one pc of Manual
