8 x 8 HDMI Matrix with RS232

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

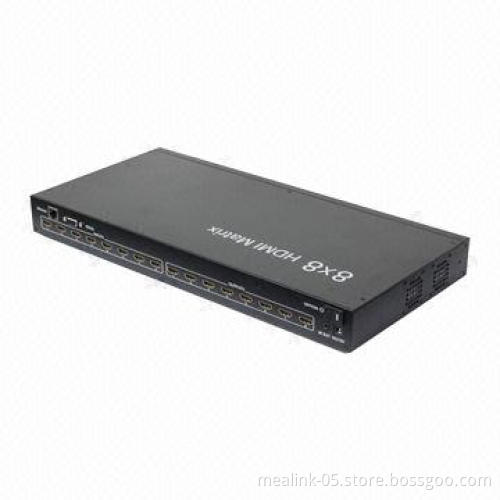

This is an 8-by-8 HDMI matrix

It allows any of the eight Input Channels (HDMI) to be routedto any of the eight output channels (HDMI), no matter the source isHDCP or not

Users can choose several different ways to control the matrix:by using Infrared, RS232 and LAN and supplied remote control

This matrix internal EDID library features default EDIDconfigurations, in addition to native EDID data for anyoutput/display

The matrix offers solutions for digital entertainment center,HDTV retail and show site, HDTV, STB, DVD and projector factory,noise, space and security concerns, data center control,information distribution, conference room presentation, school andcorporate training environments

Features:

Allows up to eight HDMI audio/video devices to be independentlyswitched to eight HDMI monitors, HDTVs or projectors
The eight output channels could show the same or differentsource simultaneously no matter the source is HDCP or not
Reading and saving EDID function from displays

Support high definition resolutions, including:

1080p@60Hz@36b/pixels, 3D, 1080i, 720p and other standard videoformats
Each port support both HDMI and DVI inputs
With extra infrared extension receiver
Six switching modes: panel buttons, local IR, RS232 andEthernet
HDCP compliant
HDMI 1.3 supported

Connection and operations:

Connect the HDMI input source (such as HD-DVD/PS3/STB and more)into XZ-0808-001
Connect HDMI OUT of XZ-0808-001 IR RX ports
Connect the Broadband IR receive cable into XZ-0808-001 IR RXports
Power on the input source you want to show (keep the unusedinput power off, otherwise it may interfere the normaldisplay)
Plug the power cable into XZ-0808-001
Turn on the power, when the LED panel stops flashing circularly, the initialization of the matrix are ready
Turn on the displays you want to watch

Allows up to eight HDMI audio/video devices to be independentlyswitched to eight HDMI monitors, HDTVs or projectors

The eight output channels could show the same or differentsource simultaneously no matter the source is HDCP or not

Reading and saving EDID function from displays

1080p@60Hz@36b/pixels, 3D, 1080i, 720p and other standard videoformats

Each port support both HDMI and DVI inputs

With extra infrared extension receiver

Six switching modes: panel buttons, local IR, RS232 andEthernet

HDCP compliant

HDMI 1.3 supported

Connect the HDMI input source (such as HD-DVD/PS3/STB and more)into XZ-0808-001

Connect HDMI OUT of XZ-0808-001 IR RX ports

Connect the Broadband IR receive cable into XZ-0808-001 IR RXports
