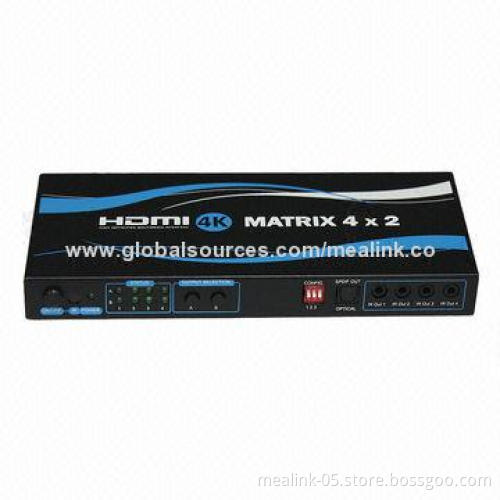

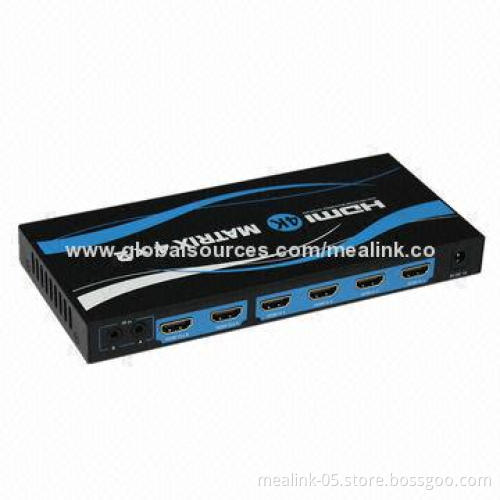

4 x 2 HDMI Matrix, OEM Orders Welcomed

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Introduction:

HDMI and IR 4x2 matrix, which can accept 4 ultra HD HDMI signal inputs, and 2 ultra HD HDMI outputs can select any one of 4 video inputs
This 4x2 matrix can support maximum 4,096*2,160, 24fs (4K2K) HDMI 1.4 specs, and also include a 4x2 IR matrix companion with video matrix

Main features:

HDMI 1.4 spec
Support 12-bit deep color supports
HDMI HDCP1.3 compatible
Supported resolutions 4K2K/1,080P/1,080i/720/576/480P/576i/480i
Support audio format PCM, Dolby®-AC3, DTS®7.1, DSD
MHL input supports (just HDMI input port 4)
HDMI 1.4 ARC supports (just HDMI output port A)
HPD and CEC supports
SPDIF digital audio output with optical port
4x2 IR emitter and receiver matrix embedded with local IR control
Auto remembering last power-off matrix status and auto-skip for unconnected inputs when power-on initialization
EDID dynamic mixing management with maximum compatibility
Power and video indicators
ESD protection level HBM ±8kV (contact discharge) for any input and output port
