100m V1.4 4X4 HDMI Matrix Extender, over Cat6e with 3D and IRNew

100m V1.4 4X4 HDMI Matrix Extender, over Cat6e with 3D and IRNew

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

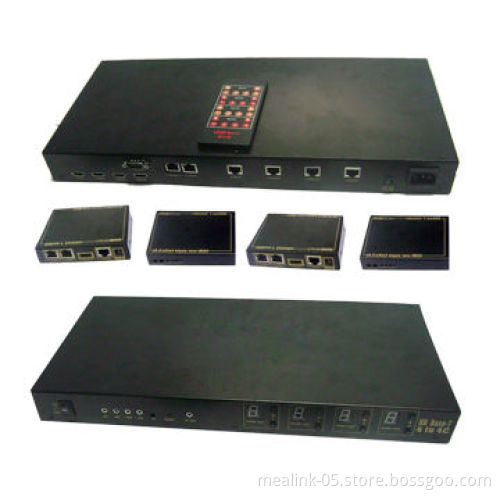

4x4 HDMI matrix extender kit has function of both 4X4 matrix switcher and HDMI extender over Cat6e

Matrix extender kit allows four HDMI devices to be switched or split easily to four removed HDMI compatible monitors, TVs or projectors over Cat6e for 100m for 1080P

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments

Features:

Four HDMI 1.4A input signals switched or split to four further HDMI devices
HDCP 1.2 protocol compliant
Supports CEC
Supports 3D
Supports IR extension (IR sender cable and IR receiver cable )
Supports two modes: Single RJ45/double RJ45 modes
Supports deep color 30bit, 36bit
Supports Blue-ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Supports signal retiming
Support input up to 15metres AWG26 HDMI 1.3 standard cable length
Output up to 25metres AWG26 cable length
Inputs can be switched with the IR remote control, also can be controlled by four buttons. It can smartly jump over those input sources which are not connected. With the smart function of memory, it can come back to the latest status when restarted or reconnected
No loss of quality
Installs in minutes
Need DC5V/4A power supply

Connecting and operating:

Connect 4 cables from 4 HDMI source devices into HDMI Matrix inputs
Connect 4 pairs of cat6e cable (no longer than 100m) from RJ45 ports of Matrix to the 4 groups of RJ45 ports of removed HDMI receivers
Connect 5V power supply to the HDMI 4x4 matrix and 4 receivers

Four HDMI 1.4A input signals switched or split to four further HDMI devices

HDCP 1.2 protocol compliant

Supports CEC

Supports 3D

Supports IR extension (IR sender cable and IR receiver cable )

Supports two modes: Single RJ45/double RJ45 modes

Supports deep color 30bit, 36bit

Supports Blue-ray 24/50/60fs/HD-DVD/xvYCC

Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Supports signal retiming

Support input up to 15metres AWG26 HDMI 1.3 standard cable length

Output up to 25metres AWG26 cable length

Inputs can be switched with the IR remote control, also can be controlled by four buttons. It can smartly jump over those input sources which are not connected. With the smart function of memory, it can come back to the latest status when restarted or reconnected

No loss of quality

Installs in minutes

Need DC5V/4A power supply

Connect 4 cables from 4 HDMI source devices into HDMI Matrix inputs

Connect 4 pairs of cat6e cable (no longer than 100m) from RJ45 ports of Matrix to the 4 groups of RJ45 ports of removed HDMI receivers

Connect 5V power supply to the HDMI 4x4 matrix and 4 receivers
