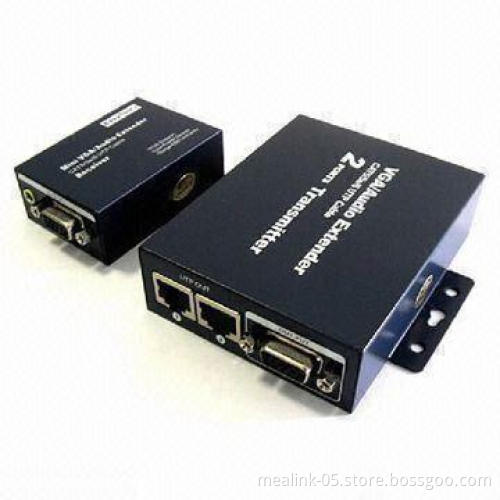

100/200/300M VGA Extender by Cat5, Supports 1,600 x 1,200 Pixels Resolution

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Extender is composed by sender and receiver
Distributes 1 VGA input to 1 VGA display over a distance of 100to 300m away without any signal loss by a UTP CAT5 cable
Supports high definition up to 1,600 x 1,200 pixels
Rack-mountable
With 1 channel VGA and audio input/output
Connect a PC host in and 1 CRT PC monitor or LCD over 300maway
USB and 9V DC power supply input port for transmitter
12V DC power supply for receiver

Specifications:

Installation guide:

Transmitter:
- Connect VGA signal (to be send) to VGA in
- Connect audio signal (to be send) to audio in
- Connect power supply plug to transmitter
- 5 reticle RJ45 insert TP-out
Receiver:
- VGA displays can be connected at the same time, but lightnesswill reduce when 2 displays are connected in

Extender is composed by sender and receiver

Distributes 1 VGA input to 1 VGA display over a distance of 100to 300m away without any signal loss by a UTP CAT5 cable

Supports high definition up to 1,600 x 1,200 pixels

Rack-mountable

With 1 channel VGA and audio input/output

Connect a PC host in and 1 CRT PC monitor or LCD over 300maway

USB and 9V DC power supply input port for transmitter

12V DC power supply for receiver

Transmission media: UPT CAT5 cable

Bandwidth: 125MHz (DC)

Differential coefficient plus: <0.5%

S/N ratio: 60dB
