Product Description

Product introduction:

Product model and standard

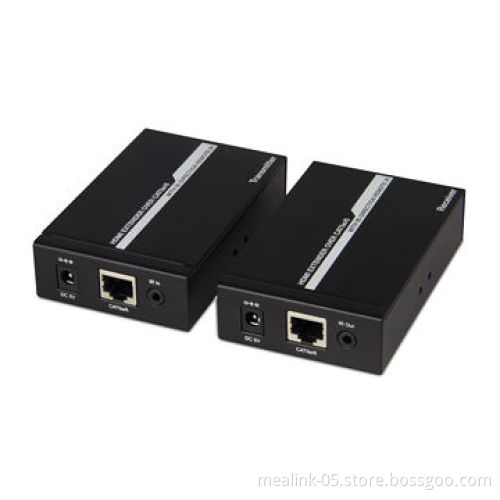

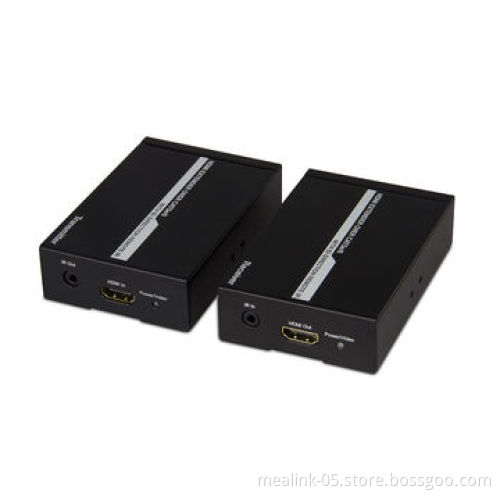

HDMI Single Cat5e/6 Bi-Direction IR extender includes transmitter and receiver. transmitters combine HDMI video, audio and control signals, then transmit them through single CAT5e cable. Receivers get these signals, separate signals and rebuild video, audio and control ones, output through HDMI interfaces. It also supports bi- direction remote IR (RX->TX and TX->RX), EDID call back, and both input and output HDCP 1.2 compatible. This product can achieve all functions through single CAT5e cable. Extending distance is 50 meters for 1080p 60Hz HD signal.

Main features:

Extending distance is 170ft(50 meters) at resolutions 1080P 3D or 1920x1200 60fs, and 270ft(80 meters) at 1080i/720P
Through single CAT5e cable
Support audio formats, Dolby True HD, DTS-master
Support 3D signals (all 7 formats), such as frame packing, side-by-side, top-to-bottom
Supports EDID call back
Supports CEC pass through
VESA DDC and hot swap technology (HPD)
Bi-direction remote IR (RX->TX and TX->RX)
HDCP 1.2 compatible
Compatible DVI 1.0.
Support cascade to enhance extending distance
Industrial metal case, easy to install

Parameters:

Interface
Transmitters
- HDMI input, IR output (3.5mm), IR input (3.5mm),RJ45 Ethernet interface, 5V DC in
Receivers:
- HDMI output, IR output (3.5mm), IR input (3.5mm),RJ45 Ethernet interface, 5V DC in
- Power: <3.5W TX or <2.5W RX
- Dimension: (L x W x H): 100 x 65 x 26mm
- Net weight: 0.2kg per unit
- Video bandwidth: Maximum TMDS clock frequency 165MHz，4.95Gbps
Resolution and distance: 1080P 170ft (50 meters)-CAT5e/ 270ft (80 meters)-CAT6
720P/1080i 270ft (80 meters)-CAT5e/ 330ft (100 meters)-CAT6
Audio formats: 8-channel, support Dolby True HD and DTS Master
TMDS input signal: 1.2 volts (point to point)
DDC input signal: 5 volts (point to point)
Indicator: Power-Red, video link-Blue
HDMI interface standard: HDMI 1.3 standard (HDMI 1.4 3D function), HDCP 1.2, support CEC, EDID
Remote IR: 38KHz
ESD level; HBM ±8 kV （contact discharge）
Temperature range: 0 ~ 40°C (operation), -20~60°C(stock)
Compliance: FCC, CE, RoHS
Product introduction
Transmitter
Packing list
- 1 unit transmitter, 1 unit receiver
- 1 remote IR blaster (with 1m cable), 1 remote IR receiver (with 1m cable)
- 1 unit of DC 5V 1A adapter
- 223*180*50mm carton
