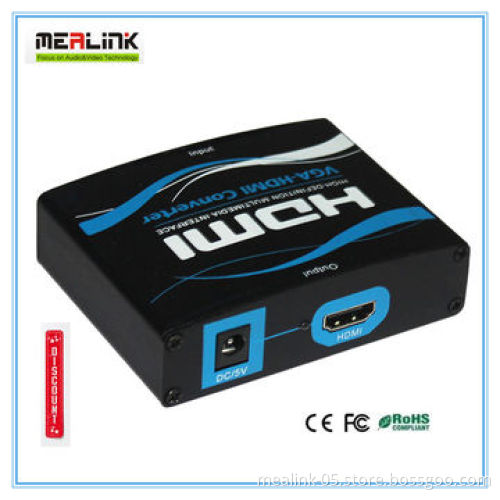

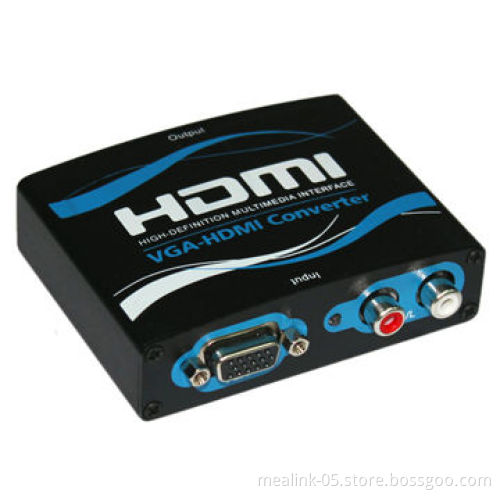

VGA+ R/L to HDMI Converter, 720P

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Product introduction:

Uses a single VGA+R/L source accessing to single HDMI1.1 sink
Allows one VGA+R/L device to be converted easily to one HDMI1.1 monitor or projector
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments

Features:

One VGA+R/L input signal convert to one HDMI 1.1 sink devices
Supported video input: VGA analog
Supported audio input: R/L analog
HDMI output: Supports up to 1280x1024, same format as input
HDCP 1.1 protocol compliant
Supports CEC
LED indication: when source or sink is working, LED relative to is light
Supports output up to 20 metres AWG26 cable length
No loss of quality
Installs in minutes
Need DC5V/1A power supply

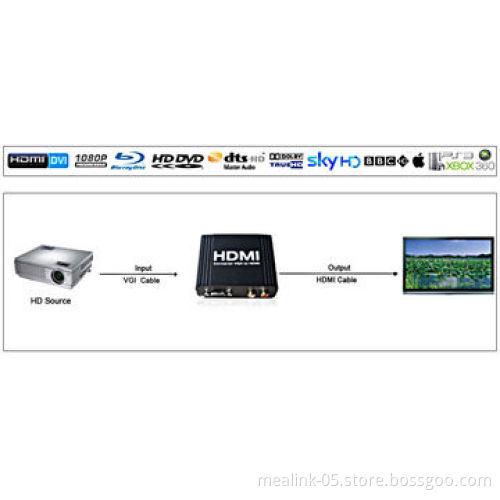

Operating and connecting:

Connect VGA+R/L from VGA source devices into converter input
Connect one cable from HDMI1.3 display (monitor or projector) into the Converter outputs
Connect 5V power supply to the HDCVGA0101 converter

Specifications:

VGA input: Supports up to SXGA/SGA/UGA(50/60/75HZ)
Audio input: R/L Analog
HDMI resolution: Supports up to 1280x1024, same format as input
Max transmission bandwidth: -5.1Gbps
Input video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TTL)
Output cable distance: ≤20m AWG26 HDMI 1.3 standard cable
Max working current
