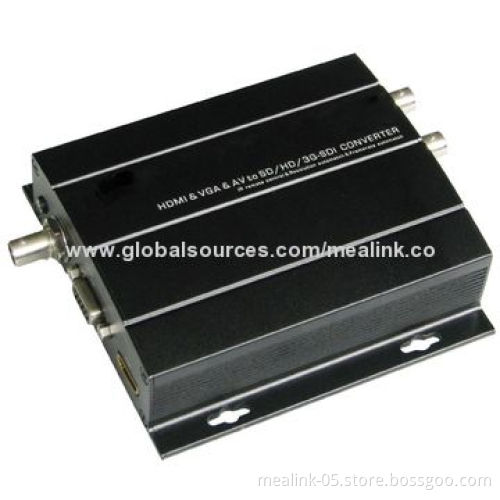

CVBS to SDI Converter with 1,920 x 1,080P ResolutionNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Supports all type SDI resolution

SMPTE 425M (A level and B level), SMPTE424M, SMPTE292M, SMPTE259M-C

Carry 2 channel SDI signal-out

Supports for OSD menu operating interface

Automatically detect the HDMI EDID information adaptive HDMI best mode

Supports all formats asymmetric conversion

The signal lost blue screen warning

VGA output format can be specified 720/1,080P

Automatically embed SDI audio signal to HDMI signal

User selectable output format

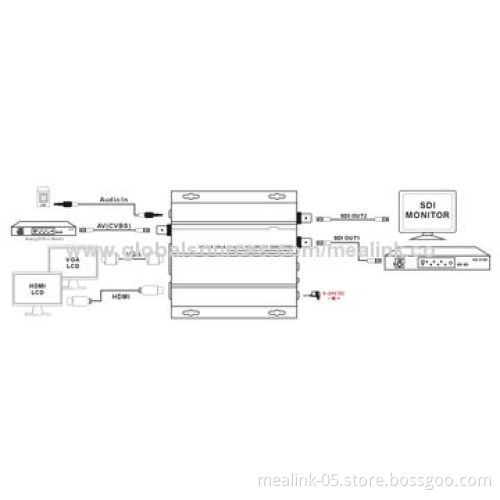

HDMI input: 1 x HDMI

VGA input: 1 x VGA

AV (CVBS) input: 1 x BNC-F

Input signal type: SD-SDI (270Mbps), HD-SDI (1.485Gbps), 3G-SDI (2.97Gbps)

Supports input formats:

SDI signal range: 0.8Vp-p

SDI impedance: 75 Ohms

SDI coupling type

AC coupling maximum output coax length

Belden 1694A

SD-SDI: 300m/1,300ft, HD-SDI 200m/600ft, 3G-SDI 120m/450ft

SDI-out interface: 2 x BNC SDI

Frequency bandwidth: 165MHz/up to standard with HDCP: HDMI 1.3

Power supply: 5-24V DC

Power consumption: 3-6W

Operating temperature: -10-60°C/14-140°F

Storage temperature: -30-70°C/-22-158°F

Relative humidity: 20-90% RH (non-condensation)

Dimensions: 158 x 120 x 36mm/6.22 x 4.72 x 1.42 inches

Weight: 300g

SD: 525i at 59.94Hz, 625i at 50Hz

HD: 720P at 23.98/24/25/29.97/30Hz

720P at 50/59.94/60Hz

1,080i at 50/59.94/60Hz

1,080P at 23.98/24/25/29.97/30Hz

3G: 1,080P at 50/59.94/60Hz
