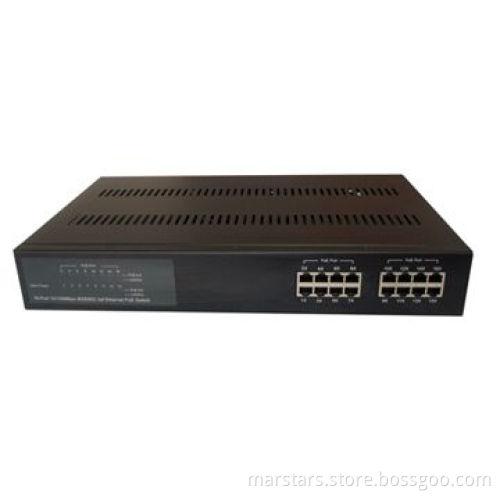

10/100Mbps Ethernet Switch with 16 IEEE 802.3 at PoE Ports
  • 10/100Mbps Ethernet Switch with 16 IEEE 802.3 at PoE Ports
10/100Mbps Ethernet Switch with 16 IEEE 802.3 at PoE Ports

10/100Mbps Ethernet Switch with 16 IEEE 802.3 at PoE Ports

Get Latest Price
Payment Type:
T/T or L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C
Product Description
Product Description
  • Features:
    • 16 IEEE 802.3at PoE ports in 19-inch standard 16-port Ethernet switch
    • Designed for home and SOHO use
    • Supports standard: Cat5, 5E and 6 cables
    • Plug-and-play convenient operation
    • Each PoE port provides 25W maximum power to connected PD devices
  • Standards and network media:
    • IEEE 802.3 10Base-T Ethernet
    • IEEE 802.3u 100Base-T fast Ethernet
    • IEEE 802.3x flow control for full-duplex
    • IEEE 802.3af power over Ethernet
    • IEEE 802.3at power over Ethernet
  • Performance:
    • Number of ports: 10/100 Base-T on all 16 ports
    • Power over Ethernet: from 1 to 16 ports
    • Ports output voltage range: 44 to 57V DC
    • Mac address table: 1K
    • Packet buffer memory: 64KB buffer
  • Interface ports:
    • 8P8C RJ-45 x 16 supports shielded (STP) and unshielded (UTP)Cat 3, 4, 5, 5E and 6
    • PoE power is delivered to twist-pair pin 1, 2 and pin 3/6
    • 10/100Mbps: x 16
    • PoE power: x 16
  • Power/electrical:
    • Total power consumption: 360W (maximum)
    • Power adapter: 110 to 220V AC/ 55V DC/3.0A
    • PoE power: up to 25.0W (maximum) for 1 to 16 ports
  • LED indicators:
    • Power on indicator x 1
    • Link/active: x 16
    • PoE power: x 16
  • Operating environment:
    • Operating temperature: 0 to 40°C
    • Storage temperature: -10 to 70°C
    • Relative humidity: 10 to 90%RH
  • Applications:
    • Supply power to power over Ethernet devices
    • VoIP phone
    • Wireless access points
    • IP camera
    • IP phone
  • 16 IEEE 802.3at PoE ports in 19-inch standard 16-port Ethernet switch
  • Designed for home and SOHO use
  • Supports standard: Cat5, 5E and 6 cables
  • Plug-and-play convenient operation
  • Each PoE port provides 25W maximum power to connected PD devices
  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-T fast Ethernet
  • IEEE 802.3x flow control for full-duplex
  • IEEE 802.3af power over Ethernet
  • IEEE 802.3at power over Ethernet
  • Number of ports: 10/100 Base-T on all 16 ports
  • Power over Ethernet: from 1 to 16 ports
  • Ports output voltage range: 44 to 57V DC
  • Mac address table: 1K
  • Packet buffer memory: 64KB buffer
  • 8P8C RJ-45 x 16 supports shielded (STP) and unshielded (UTP)Cat 3, 4, 5, 5E and 6
  • PoE power is delivered to twist-pair pin 1, 2 and pin 3/6
  • 10/100Mbps: x 16
  • PoE power: x 16
  • Total power consumption: 360W (maximum)
  • Power adapter: 110 to 220V AC/ 55V DC/3.0A
  • PoE power: up to 25.0W (maximum) for 1 to 16 ports
  • Power on indicator x 1
  • Link/active: x 16
  • PoE power: x 16
  • Operating temperature: 0 to 40°C
  • Storage temperature: -10 to 70°C
  • Relative humidity: 10 to 90%RH
  • Supply power to power over Ethernet devices
  • VoIP phone
  • Wireless access points
  • IP camera
  • IP phone
