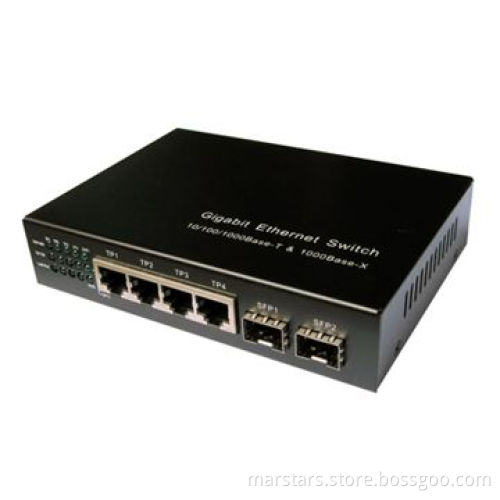

Fiber Switch with 2 SFP Slots and 4/10/100/1000M Ethernet Ports
  • Fiber Switch with 2 SFP Slots and 4/10/100/1000M Ethernet Ports
Fiber Switch with 2 SFP Slots and 4/10/100/1000M Ethernet Ports

Fiber Switch with 2 SFP Slots and 4/10/100/1000M Ethernet Ports

Get Latest Price
Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Can switch Ethernet signals among 10/100/1000M UTP ports (T)and 1000M optical fiber interfaces
  • Auto negotiation function supports UTP ports to auto10/100/1000M and full duplex/half duplex
  • SFP slot supports 1000M and full duplex mode
  • Supports flow control and broadcast storm protection
  • Supports VLAN
  • Supports the maximum 10K bytes frame
  • Low power consume (4W), low heat and good reliability
  • Technical specifications:
    • Operating standardsIEEE802.3z/AB, 10/100/1000 base-T and 1000base-S X/LX
    • MAC address table: 1K
    • Frame buffer memory: 1MKb
    • Switching capacity12g
    • Connectors:
      • UTP: RJ-45, 10/100/1000Mbps
      • SFP slot: 1000Mbps
    • Cable:
      • UTP: Cat.5 or 6 UTP (maximum distance up to 100M)
    • Multimode fiber: 50/125, 62.5/125μm (maximum distance up to224/550m)
    • Singlemode fiber: 8/125, 8.7/125. 9/125μm (maximum distanceup to 10 to 100km)
    • Flow control:
      • Full duplex: IEEE802.3X flow control
    • Half duplex: back pressure flow control
    • LED: PWR, F1 link/act, F2 link/act, TP1 to TP4 link/act, TP1 toTP4 100, TP1 to TP4 1000
    • Power requirement:
      • Input: 100 to 240V AC, 50 to 60Hz
      • Output: 5V DC/2A
    • Ambient temperature: 0 to +50°C
    • Storage temperature: -20 to +70°C
    • Humidity: 5 to 90%
  • Operating standardsIEEE802.3z/AB, 10/100/1000 base-T and 1000base-S X/LX
  • MAC address table: 1K
  • Frame buffer memory: 1MKb
  • Switching capacity12g
  • Connectors:
    • UTP: RJ-45, 10/100/1000Mbps
    • SFP slot: 1000Mbps
  • Cable:
    • UTP: Cat.5 or 6 UTP (maximum distance up to 100M)
  • Multimode fiber: 50/125, 62.5/125μm (maximum distance up to224/550m)
  • Singlemode fiber: 8/125, 8.7/125. 9/125μm (maximum distanceup to 10 to 100km)
  • Flow control:
    • Full duplex: IEEE802.3X flow control
  • Half duplex: back pressure flow control
  • LED: PWR, F1 link/act, F2 link/act, TP1 to TP4 link/act, TP1 toTP4 100, TP1 to TP4 1000
  • Power requirement:
    • Input: 100 to 240V AC, 50 to 60Hz
    • Output: 5V DC/2A
  • Ambient temperature: 0 to +50°C
  • Storage temperature: -20 to +70°C
  • Humidity: 5 to 90%
  • UTP: RJ-45, 10/100/1000Mbps
  • SFP slot: 1000Mbps
  • UTP: Cat.5 or 6 UTP (maximum distance up to 100M)
  • Full duplex: IEEE802.3X flow control
  • Input: 100 to 240V AC, 50 to 60Hz
  • Output: 5V DC/2A
