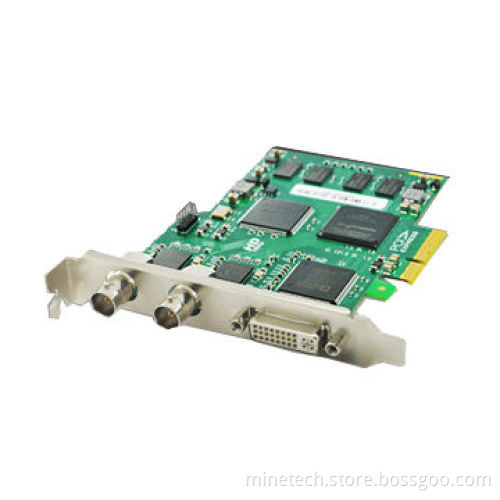

PCI-E HDMI capture card, 2 BNC interface, DVI-I interface (connect HDMI, VGA and YPbPr)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Board size: 117 x 94.67mm

Host interface,PCI-express x4, half-length, X 700MB/S transmission bandwidth

Input interface: 1 DVI-I interface (HDMI, VGA and YPbPr)

2 BNC interface (2 SD/HD/3G-SDI)

Maximum sampling rate CVBS: 54MHz (4x oversampling)

RGB/ YPbPr: 170MHz

HDMI/DVI: 225MHz

SDI: 3G

On board memory256MB DDR2, 160MHz of working frequency, 64-bit of bit wide

VGA input format: 640 x 400 to 2048 x 1536, pixel rate is under 170MHz

YPbPr input format: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p

DVI input format: up to DVI 1.0 standard and single continuity

HDMI input format: up to HDMI 1.3 standard and supports 36-bit deep color

CVBS input standards: PAL/NTSC

SDI input format: SD/HD/3G-SDI, up to SMPTE-259/274/296/372/424/425/292 standard

HD output image format size: 40x30 to 2048x1536

Frame rate: 1 to 100fps

Colors: YUY2, UYVY, RGB24, RGB32 and I420

Operating system support

Supports following operating systems (x 86 version or x64 version):

Windows® XP professional

Windows® server 2003

Windows vista®

Windows® server 2008

Windows® 7

Windows® server 2008 R²
