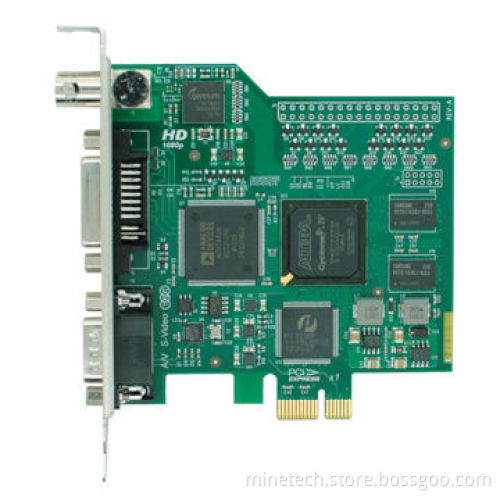

PCI-E HDMI Video Capture Card, 1,080P/60Hz< Captures SDI, DVI, VGA, HDMI, Y/Pb/Pr

PCI-E HDMI Video Capture Card, 1,080P/60Hz< Captures SDI, DVI, VGA, HDMI, Y/Pb/Pr

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Host interface: PCI-Express x 1, low profile, 200Mbps transmission bandwidth

Input interface: 1 DVI-I interface (can connect to HDMI, VGA, YPbPr)

1 BNC interface (can connect to SD/HD/3G-SDI)

1 DB9 interface (to YPbPr, S-Video, CVBS,1 unbalanced stereo audio line in)

DVI input: 1 1080P/60Hz HD DVI signal

HDMI input: 1 1080P/60Hz HDMI signal

SDI input: 1 SD/HD3G-SDI signal, it can reach 1080P/60Hz

VGA input: 1 VGA

YPbPr input: 1 YPbPr

CVBS input: 1 SD video signal

HDMI input: 1 LPCM audio signal

SDI input: 1 embedded SDI audio

Analog audio: 1 analog audio

DVI input formats: meets DVI 1.0 standard, single connection (480i, 576i, 480p, 576p, 720p, 1080i, 1080p)

HDMI input formats: meets HDMI 1.3 standard, support 36 bits deep color

SDI input formats: SD/HD/3G-SDI, it meets standards of SMPTE-259/274/296/372/424/425/292

YPbPr input formats: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p

VGA input formats: 640x400-2,048x1,536 when the pixel is below 170MHz, provides safe mode for VGA signals and can capture irregular resolutions

CVBS input standards: PAL/NTSC

HD output format: 40x30-2,048x1,536 (frame rate: 1-100fps)

SD output format: 176x144-768x576 (frame rate:1-30fps)

Analog audio sampling rate and SNR: up to 96kHz, 85dB, 24-bit

Video sampling rate: CVBS: 57.27MHz (4x oversampling)

RGB/component: 170MHz

HDMI/DVI: 225MHz

Video sampling precision: 128MB DDR2, 160 MHz of working frequency, 32bit of bit wide

YPbPr input mode: 10 bits

Color space: YUYV, UYUV, I420, RGB 24bit, RGB 32 bits

HDMI input mode: up to HDMI 1.3 standard, support 36bit DeepColor

Video processing

Color space switch: hardware color switch

De-interlacing: vertical filter de-interlacing, motion-adaptive de-interlacing

Image scale: hardware 5-tap scale

Image mirror: horizontal, vertical

Image clip: supported

Operating system support:

Microsoft Windows XP Professional

Microsoft Windows Server 2003

Microsoft Windows Vista

Microsoft Windows server 2008/7
