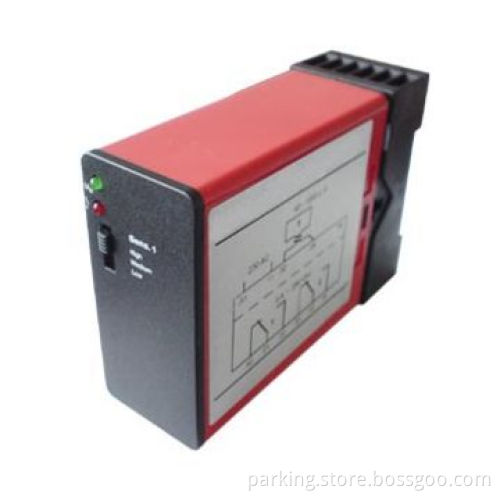

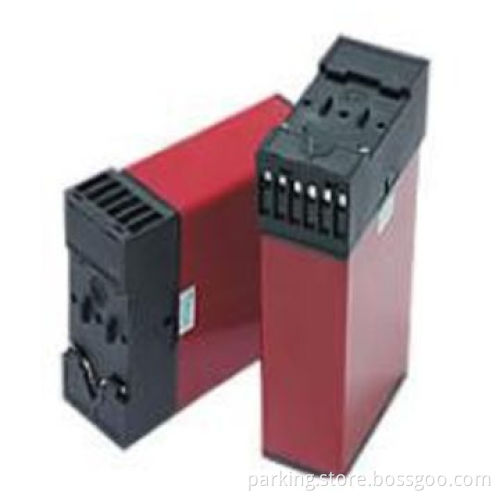

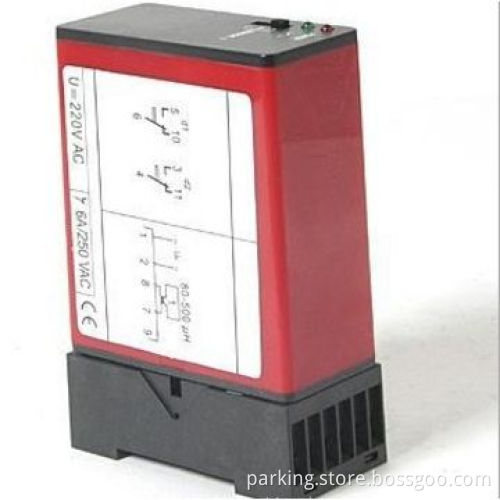

Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
  • Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
  • Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
  • Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
  • Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
  • Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
  • Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles
Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles

Vehicle Loop Detector, Suitable for Monitoring and Safeguarding Access Ways or Counting Vehicles

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • 2-way output relays2 outputs of them are unlimited when the corresponding loop is permanently covered, while the others are multimode that can be set by users
    • Direction detecting function can be used to statistics the vehicle flux
    • Principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles
    • Changes are picked up and evaluated by microprocessor
    • Ease of use due to automatic calibration when the operating voltage is applied
  • Specifications:
    • Power: 2.5W
    • Working voltage: 110 to 220V AC and 12 to 24V DC (optional)
    • Frequency range: 20 to 170kHz
    • Sensitivity: 3 grades adjustable
    • Reaction time: 100ms
    • Environment compensation: automatic drift compensation
    • Loop inductance:
      • Loop connection wiring: 5m (maximum), twisted 20 times at least per meter
    • Total resistance: <10Ω
    • Temperature:
      • Relative humidity: 95% RH (maximum)
    • Size: 85 x 74 x 36mm
  • 2-way output relays2 outputs of them are unlimited when the corresponding loop is permanently covered, while the others are multimode that can be set by users
  • Direction detecting function can be used to statistics the vehicle flux
  • Principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles
  • Changes are picked up and evaluated by microprocessor
  • Ease of use due to automatic calibration when the operating voltage is applied
  • Power: 2.5W
  • Working voltage: 110 to 220V AC and 12 to 24V DC (optional)
  • Frequency range: 20 to 170kHz
  • Sensitivity: 3 grades adjustable
  • Reaction time: 100ms
  • Environment compensation: automatic drift compensation
  • Loop inductance:
    • Loop connection wiring: 5m (maximum), twisted 20 times at least per meter
  • Total resistance: <10Ω
  • Temperature:
    • Relative humidity: 95% RH (maximum)
  • Size: 85 x 74 x 36mm
  • Loop connection wiring: 5m (maximum), twisted 20 times at least per meter
  • Relative humidity: 95% RH (maximum)
