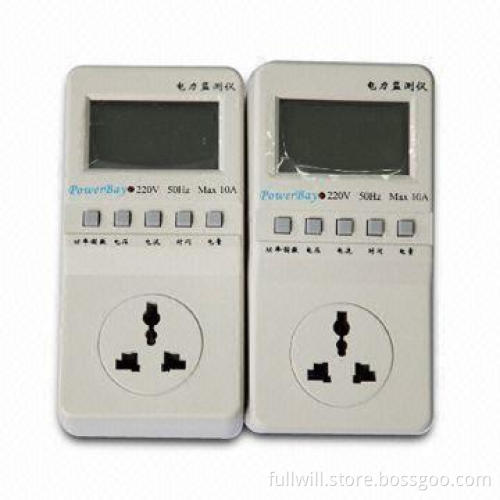

Energy Monitor with LED Display Screen and 50 to 60Hz Frequency
  • Energy Monitor with LED Display Screen and 50 to 60Hz Frequency
Energy Monitor with LED Display Screen and 50 to 60Hz Frequency

Energy Monitor with LED Display Screen and 50 to 60Hz Frequency

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Main functions:
    • Measure active power, red indicating lamp will glimmer when the energy is being used large LCD display
    • Display voltage, current, power, power factor, energy, and more
    • Display in turn by pressing play button
    • Can customized the product by customers' requirements
  • Other parameters:
    • Performing standard: BC17215-2003
    • Voltage: 110, 220, and 230V
    • Frequency: 50 to 60Hz
    • Maximum current: 10 or 15A
    • Accuracy: 1.0s
    • Constant: 6,400imp/kWh
    • Power consumption: less than 0.4W (no backlight), less than 0.8W (backlight)
    • Size: 158 x 80 x 50mm
    • Normal working voltage: 0.85 to 1.15V
    • Weight: 0.3kg
    • Limit working temperature: 0.80 to 1.2°C
    • Working temperature: -25 to 45°C
  • Remark:
    • For 10 to 15A load, we do not recommend the use of long measurement because of the plug and socket contact with some larger power
  • Measure active power, red indicating lamp will glimmer when the energy is being used large LCD display
  • Display voltage, current, power, power factor, energy, and more
  • Display in turn by pressing play button
  • Can customized the product by customers' requirements
  • Performing standard: BC17215-2003
  • Voltage: 110, 220, and 230V
  • Frequency: 50 to 60Hz
  • Maximum current: 10 or 15A
  • Accuracy: 1.0s
  • Constant: 6,400imp/kWh
  • Power consumption: less than 0.4W (no backlight), less than 0.8W (backlight)
  • Size: 158 x 80 x 50mm
  • Normal working voltage: 0.85 to 1.15V
  • Weight: 0.3kg
  • Limit working temperature: 0.80 to 1.2°C
  • Working temperature: -25 to 45°C
  • For 10 to 15A load, we do not recommend the use of long measurement because of the plug and socket contact with some larger power
