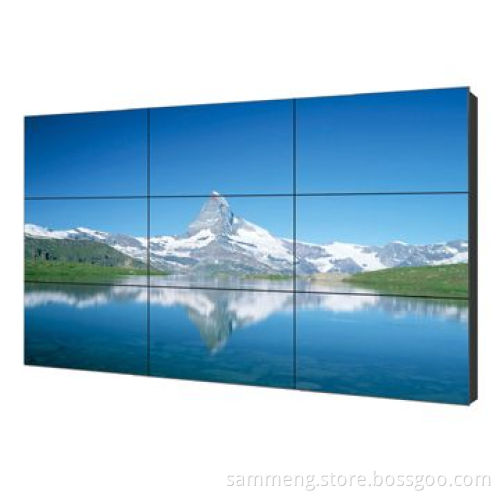

55-inch HD LCD DID Video Wall with 5.7mm Ultra-narrow Gap and LED Backlight

Get Latest Price

Payment Type:: TT, 30% Advance, 70% Balance before Shipment

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, 30% Advance, 70% Balance before Shipment

Product Description

Specifications:

Panel size: 55 inches
Outer size (L x H x T): 1,215.3 x 686.1 x 129mm
Viewing area (L x H): 1,209.6 x 680.4mm
Resolutions: 1,920 x 1,080 pixels
Contrast ratio: 4,000:1
Brightness: 700cd/m²
Gap between panels: 5.7mm
Power: 300W
Response time: 8 milliseconds

Features:

Samsung industrial panel
Supports 24 hours continuously playing
The gaps between panels is 5.7mm
Ultra-narrow gap
Full hardware structure
No CPU and operating system
Easy installation, only fixed them together by metal frame (we can offer metal frame, each cost is $35/unit)
Easy operating, can operate the system together with the software flexible, we offer free software
Supports RS-232 serial ports remote control
Supports multi-signal input include BNC, YPbPr, VGA, HDMI,RS232
Images are displayed smoothly and naturally without time delay and tailing and the image quality are quite smoothly
Supporting N x M panels splicing to show a big image operated by our software
Supporting any panel splicing, dual splicing
Supports any signal displaying in different panel and full screens and supporting different signal showing in the screen or full screens operated by our software (equipped with a matrix)
Supports 420p, 720p, 1,080i and 1,080 pixels
Use lifespan: over 50,000 hours
Easy maintenance, if one unit is going bad, only replace it with a new one
I/O ports:
- IR in, RS232 in, RS232 out, audio in, CVBS audio in YPbPr audio in, V GA audio in, BNC out, BNC1 in, BNC2 in YPbPr in, VGA in, HDMI
Voltages: 100-240V AC

Panel size: 55 inches

Outer size (L x H x T): 1,215.3 x 686.1 x 129mm

Viewing area (L x H): 1,209.6 x 680.4mm

Resolutions: 1,920 x 1,080 pixels

Contrast ratio: 4,000:1

Brightness: 700cd/m²

Gap between panels: 5.7mm

Power: 300W

Response time: 8 milliseconds

Samsung industrial panel

Supports 24 hours continuously playing

The gaps between panels is 5.7mm

Ultra-narrow gap

Full hardware structure

No CPU and operating system

Easy installation, only fixed them together by metal frame (we can offer metal frame, each cost is $35/unit)

Easy operating, can operate the system together with the software flexible, we offer free software

Supports RS-232 serial ports remote control

Supports multi-signal input include BNC, YPbPr, VGA, HDMI,RS232

Images are displayed smoothly and naturally without time delay and tailing and the image quality are quite smoothly

Supporting N x M panels splicing to show a big image operated by our software

Supporting any panel splicing, dual splicing

Supports any signal displaying in different panel and full screens and supporting different signal showing in the screen or full screens operated by our software (equipped with a matrix)

Supports 420p, 720p, 1,080i and 1,080 pixels

Use lifespan: over 50,000 hours

Easy maintenance, if one unit is going bad, only replace it with a new one

I/O ports:
