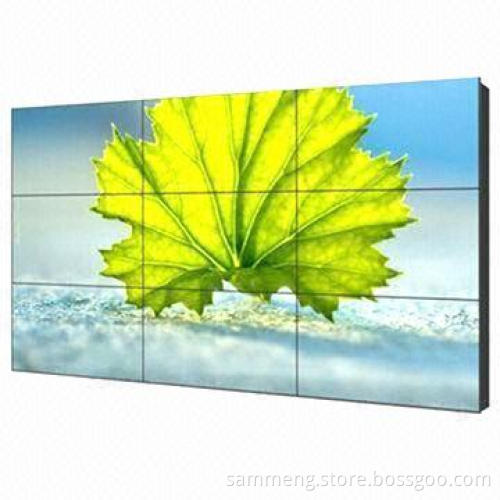

3 x 3 47-inch High Light LG DID Panel Video Wall for CCTV Monitoring Surveillance and Advertisement

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, 30% Aadvance, 70% Balance before Shipment

Product Description

Panel size: 47-inch LG DID panel

Out size (L x H x T ): 1046.8 x 591.6 x 15mm

View area (L x H): 1039.9 x 574.7mm

Resolution: 1,366 x 768 pixels

Contrast ratio: 1,500:1

Brightness: 800cd/m2

After combine width: 22mm

Power: 220W

Response time: 8m/s

Color: 16.7M

Splice quantity: M x (Row)x N (Line) pcs

Installation wall mount (Floor-stand are optional)

Viewing angles: 178°/178°(H/V)

Operate environment conditions: 0-60°C/10-90% (nocondensation)

Input signals: RGB, HDMI, YPbPra, video 1, video 2, audio I/Osignal

Display quality: 3D Comb filter, 3D noise reduction, HD,progressive-scan, 10-bit TFT panel, drive and PIP

CCFL bright and colorful backlight

Features:

Narrow gap between screens

Use special industrial Panel-Sammeng DID, panel-long lifetime,high reliability

No need separate controller to splice the screens, splice anyscreens to display one picture or video by a software system

Supports multiple zones screen, the screen can be divided intomany display areas which can play different contentrespectively

Supports video, audio, images and text playing function

Compatible file formats: AVI, MPG/MPEG, VOB and DAT, MPEG 1,MPEG 2 or DIVX, MP3, 24 bites BMP, JPEG and general text file

Supports text/photo rolling display

Supports annual calendar

Supports file name revision, move, delete and set up indexfunction

Supports background music function

Supports advertising content insert function at a settledtime

Supports template display as your design

Supports STB monitor system function

Supports FTP download monitor system function

Provide a control software system with Chinese, Englishlanguages swift

Supports software upgrading online

Built-in 1G CF card
