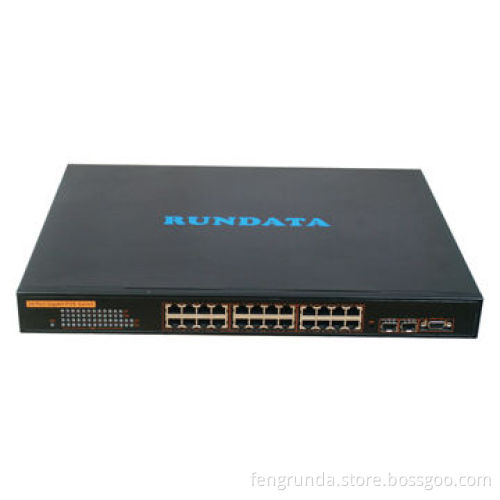

24-channel PoE Switch with 2 Gigabit SFP Ports

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Network protocols and standards:

IEEE 802.3 10 base-T
IEEE 802.3u 100 base-TX
IEEE 802.3ab 1000 base-T
IEEE 802.3z 1000 base-X
IEEE 802.3x flow control
IEEE 802.3af power over Ethernet

Power specifications:

Power consumption: maximum 400W
PoE power: 400W
Voltage: 100 - 240V AC and 50-60Hz
Network interface: 24 10/100M ports (MDI/MDIX adaptive) and ports with PoE features (24)
2-10/100/1000M gigabit copper RJ45 ports (MDI/MDIX adaptive)
2 SFP GBIC fiber module slots

Physical specifications:

Dimensions: 440 x 350 x 44mm
Weight: 5.5kg

Electromagnetic radiation:

CE mark and commercial
FCC part 15 class A
VCCI class A
C-Tick

Environment norms:

Operating temperature: 0 to 50°C (32 to 104°F)
Storage temperature: -20 to 70°C (-4 to 158°F)
Operating humidity: maximum relative humidity 90% without condensation
Storage humidity: 95% maximum relative humidity and non-condensing
Working height: up to 10,000ft (3000m)
Storage altitude: largest 10,000ft (3000m)

LEDs:

Each device: power light
Per port (10/100 and gigabit): connection speed indicator
Per PoE port: PoE power-on LED
Radiation/electromagnetic immunity
EN 55024

Certifications: CE and FCC

RoHS Directive-compliant

Performance specifications:

Forwarding modes: store and forward
Bandwidth:12.8Gbps (non-blocking)
Network latency: 100 to 100Mbps transmission, storage and forwarding mode under a 64-byte frame delay is less than 20 microseconds
Buffer memory: 3MB per system
Addressing: 48-bit Mac address
Address database size: 8000 per system Mac address
Mean failure interval (MTBF): 300,000 hours (about 34 years)
Warranty: 1 year

Packing contents:

PS2024G and 24 port PoE switch
Power cord
Data sheet

IEEE 802.3 10 base-T

IEEE 802.3u 100 base-TX

IEEE 802.3ab 1000 base-T

IEEE 802.3z 1000 base-X

IEEE 802.3x flow control

IEEE 802.3af power over Ethernet

Power consumption: maximum 400W

PoE power: 400W

Voltage: 100 - 240V AC and 50-60Hz

Network interface: 24 10/100M ports (MDI/MDIX adaptive) and ports with PoE features (24)

2-10/100/1000M gigabit copper RJ45 ports (MDI/MDIX adaptive)

2 SFP GBIC fiber module slots

Dimensions: 440 x 350 x 44mm

Weight: 5.5kg

CE mark and commercial

FCC part 15 class A

VCCI class A

C-Tick

Operating temperature: 0 to 50°C (32 to 104°F)

Storage temperature: -20 to 70°C (-4 to 158°F)

Operating humidity: maximum relative humidity 90% without condensation

Storage humidity: 95% maximum relative humidity and non-condensing

Working height: up to 10,000ft (3000m)

Storage altitude: largest 10,000ft (3000m)

Each device: power light

Per port (10/100 and gigabit): connection speed indicator

Per PoE port: PoE power-on LED

Radiation/electromagnetic immunity

EN 55024

Forwarding modes: store and forward

Bandwidth:12.8Gbps (non-blocking)

Network latency: 100 to 100Mbps transmission, storage and forwarding mode under a 64-byte frame delay is less than 20 microseconds

Buffer memory: 3MB per system

Addressing: 48-bit Mac address

Address database size: 8000 per system Mac address

Mean failure interval (MTBF): 300,000 hours (about 34 years)

Warranty: 1 year

PS2024G and 24 port PoE switch

Power cord

Data sheet
