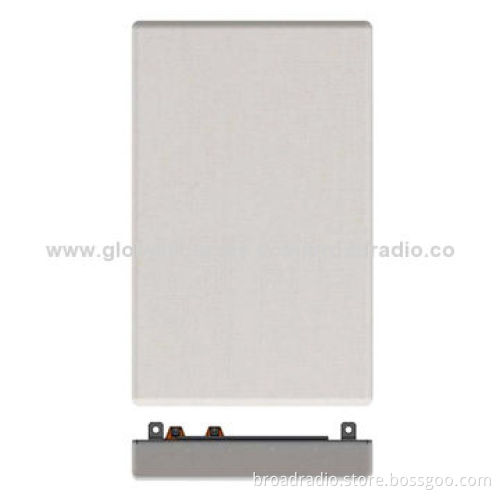

XX Pol Panel 1710-2170, 2300-2690, 50/50 Degrees, 10/10dBi Degrees F Base Station Antenna
  • XX Pol Panel 1710-2170, 2300-2690, 50/50 Degrees, 10/10dBi Degrees F Base Station Antenna
  • XX Pol Panel 1710-2170, 2300-2690, 50/50 Degrees, 10/10dBi Degrees F Base Station Antenna
XX Pol Panel 1710-2170, 2300-2690, 50/50 Degrees, 10/10dBi Degrees F Base Station Antenna
XX Pol Panel 1710-2170, 2300-2690, 50/50 Degrees, 10/10dBi Degrees F Base Station Antenna

XX Pol Panel 1710-2170, 2300-2690, 50/50 Degrees, 10/10dBi Degrees F Base Station Antenna

Get Latest Price
Payment Type:
PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: PayPal
Product Description
Product Description
  • V Pol panel 824-960 50°10dBi 0-20°T
  • Model no.:GPA0505M
  • RF specifications:
    • Frequency range: 1,710-2170,  2,300-2,690MHz
    • Gain: >10dBi
    • Return loss (dB): >14 (VSWR <1.5)
    • Polarization: ±45°
    • Horizontal beam-width : 50° (3dB), <90° (20dB)
    • Vertical beam-width: 50° (3dB), <90° (20dB)
    • Horizontal side-lobe suppression: (deviating from the axially azimuth: >|± 45°|)> 20dB
    • Vertical side-lobe suppression: (deviating from the axially azimuth: >|± 45°|)> 20dB
    • Preset tilt (°): 0
    • Front to back ratio (dB): >25
    • Power rating (W): 50
    • Inter-modulation (dBm): -107
    • Impedance(ohm): 50
    • Lightning protection: DC grounded
    • Connector type: 2 x 7/16 DIN female
  • Mechanical data:
    • Antenna dimensions: 798 x 430 x 124mm
    • Antenna weight: 12kg
    • Radom material: UV-ASA
    • Pole diameter: 75-110mm
    • Mounting options: Fixed and adjustable clamps
  • Environmental ratings:
    • Humidity range: 95% RH@30℃
    • Temperatures: -40~70℃
    • Anti-ice capacity: 10mm
    • Maximum lateral loading: 160km/h (working), 200km/h (maximum)
    • Rain resistance: 140mm/h
  • Frequency range: 1,710-2170,  2,300-2,690MHz
  • Gain: >10dBi
  • Return loss (dB): >14 (VSWR <1.5)
  • Polarization: ±45°
  • Horizontal beam-width : 50° (3dB), <90° (20dB)
  • Vertical beam-width: 50° (3dB), <90° (20dB)
  • Horizontal side-lobe suppression: (deviating from the axially azimuth: >|± 45°|)> 20dB
  • Vertical side-lobe suppression: (deviating from the axially azimuth: >|± 45°|)> 20dB
  • Preset tilt (°): 0
  • Front to back ratio (dB): >25
  • Power rating (W): 50
  • Inter-modulation (dBm): -107
  • Impedance(ohm): 50
  • Lightning protection: DC grounded
  • Connector type: 2 x 7/16 DIN female
  • Antenna dimensions: 798 x 430 x 124mm
  • Antenna weight: 12kg
  • Radom material: UV-ASA
  • Pole diameter: 75-110mm
  • Mounting options: Fixed and adjustable clamps
  • Humidity range: 95% RH@30℃
  • Temperatures: -40~70℃
  • Anti-ice capacity: 10mm
  • Maximum lateral loading: 160km/h (working), 200km/h (maximum)
  • Rain resistance: 140mm/h
