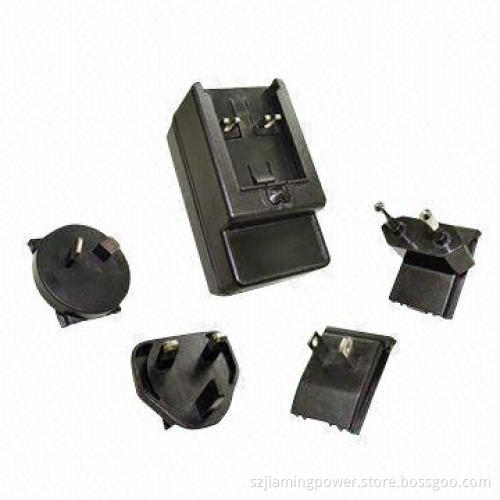

AC/DC Switching Adapter with Fixed and Interchangeable Plugs

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Input voltage range: 90 to 264V AC

Medical wall-mount type (with fixed/interchangeable plug) anddesktop type AC/DC adapter

Input current (RMS): 0.7A maximum

Efficiency: 70% minimum at full load, average efficiency fitrequirement for CEC models

Output voltage: 3 to 27V

Voltage regulation: ±5% maximum

Leakage current: maximum of 0.1mAh

Withstand voltage:

Operating temperature: -10 to 50°C

Storage temperature: -20 to 85°C

Operating humidity: 20 to 90% RH

Protections: OVP, OLP, and short-circuit protection

Safety standard: UL, TUV, EN60601-1, CE, CB, LPS and CECIV

EMC standard: EN55011, CISPR-II and FCC part 18 class B

Standard output connector: DC barrel jack

Standard output cable/length:

Model list:

I/P-O/P (V+): 5,656V DC, I/P-FG, and 2,828V DC

UL1185, #18 or 20AWG/4ft (desktop)

UL2468, #18 or 20AWG/5ft (wall mount)

FRM015-S03-x: 3 to 5V, 3.4 to 2A

FRM015-S05-x: 5 to 6V, 2 to 1.67A

FRM015-S07-x: 6 to 8V, 2 to 1.5A

FRM015-S09-x: 8 to 11V, 1.87 to 1.36A

FRM015-S12-x: 11 to 13V, 1.36 to 1.15A

FRM015-S15-x: 13 to 16V, 1.15 to 0.94A

FRM015-S18-x: 16 to 21V, 0.94 to 0.72A

FRM015-S24-x: 21 to 27V, 0.72 to 0.56A
